PSMN033-100HLX

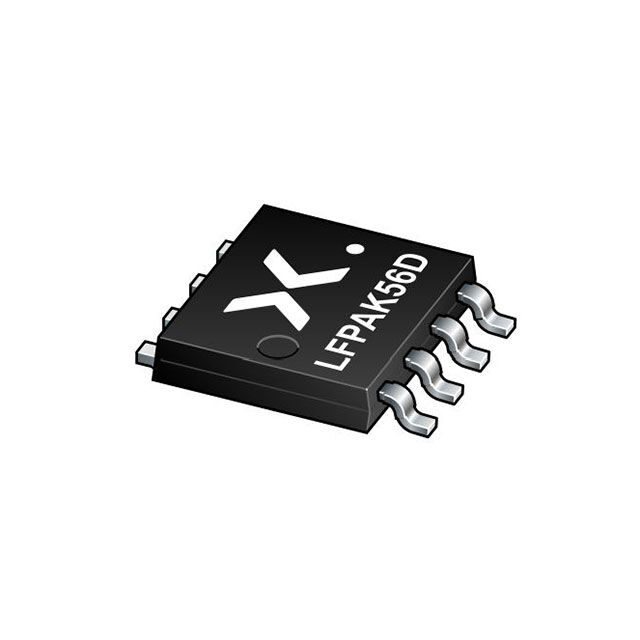

lmages are for reference only.PSMN033-100HLX
MOSFET 2N-CH 100V 26A LFPAK56D
DatasheetSOT-1205, 8-LFPAK56
50,430 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 100V 26A (Ta) 64W (Ta) Surface Mount LFPAK56D
PSMN033-100HLX
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 100V |
| Current - Continuous Drain (Id) @ 25°C | 26A (Ta) |
| Rds On (Max) @ Id, Vgs | 31mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 27.3nC @ 5V |
| Input Capacitance (Ciss) (Max) @ Vds | 3168pF @ 25V |
| Power - Max | 64W (Ta) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-1205, 8-LFPAK56 |
| Supplier Device Package | LFPAK56D |
| Base Product Number | PSMN033 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PSMN011-60HLX | PSMN012-60HLX | PSMN013-40VLDX | PSMN013-60HLX |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2N-CH 60V 35A LFPAK56D | MOSFET 2N-CH 60V 40A LFPAK56D | MOSFET 2N-CH 40V 42A LFPAK56D | MOSFET 2N-CH 60V 40A LFPAK56D |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
