Product CatalogPart Number
PSR070DL0080Z
Manufacturer
Littelfuse Inc.Description
FUSE SQUARE 80A 1.3KVAC/1KVDC
Datasheet
DatasheetPackage
-
In Stock
95,069 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PSR070DL0080Z
PSR070DL0080Z

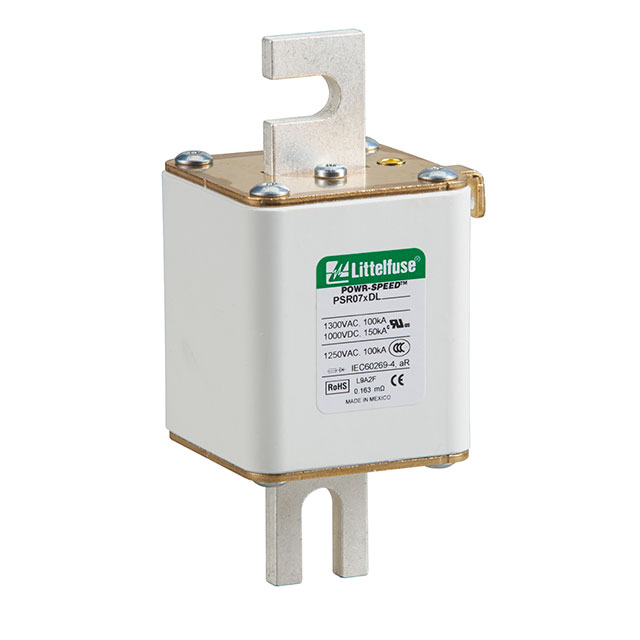

lmages are for reference only.Payment Methods
Delivery Services
80A 1.3 kVAC 1 kVDC Fuse Square Bolt Mount
Quick Inquiry
PSR070DL0080Z
Specifications
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Littelfuse Inc. |
| Series | POWR-SPEED® PSR |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Bolt Mount |
| Fuse Type | Square |
| Current Rating (Amps) | 80A |
| Voltage Rating - AC | 1.3 kVAC |
| Response Time | Fast Blow |
| Applications | Semiconductors |
| Features | Indicating |
| Class | - |
| Approval Agency | CCC, CE, cURus, UL |
| Operating Temperature | -55°C ~ 125°C |
| Breaking Capacity @ Rated Voltage | 100kA AC, 150kA DC |
| Package / Case | - |
| Size / Dimension | 2.811" L x 1.693" W x 1.929" H (71.40mm x 43.00mm x 49.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 583.0 |
| DC Cold Resistance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PSR070DL0050Z | PSR070DL0063Z | PSR070DL0100Z | PSR070DL0125Z |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE SQUARE 50A 1.3KVAC/1KVDC | FUSE SQUARE 63A 1.3KVAC/1KVDC | FUSE SQUARE 100A 1.3KVAC/1KVDC | FUSE SQUARE 125A 1.3KVAC/1KVDC |
| Series | POWR-SPEED® PSR | POWR-SPEED® PSR | POWR-SPEED® PSR | POWR-SPEED® PSR |
| Packaging | Box | Box | Box | Box |
Customers Also Interested in
Recommended Products
PSR070DL0050Z
Littelfuse Inc.
PSR070DL0063Z
Littelfuse Inc.
PSR070DL0100Z
Littelfuse Inc.
PSR070DL0125Z
Littelfuse Inc.
PSR070DL0160Z
Littelfuse Inc.
PSR070DL0200Z
Littelfuse Inc.
PSR070DL0250Z
Littelfuse Inc.
PSR070DL0280Z
Littelfuse Inc.
PSR070DL0315Z
Littelfuse Inc.
PSR070DL0350Z
Littelfuse Inc.
PSR070DL0400Z
Littelfuse Inc.

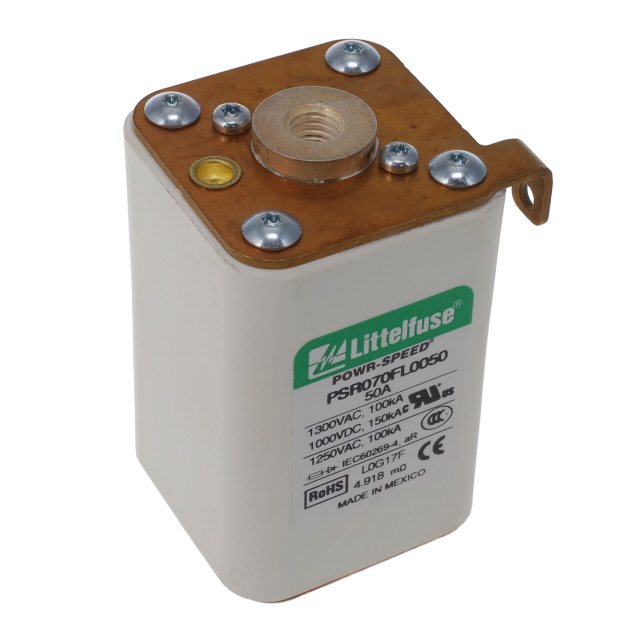

PSR070FL0050Z
