PST360G2-B-1A-C0007-ERA180-05K
lmages are for reference only.PST360G2-B-1A-C0007-ERA180-05K
HALL-EFFECT THROUGH-SHAFT ROTARY
DatasheetBox with Wire Leads
45,808 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position Hole for Shaft Cable
PST360G2-B-1A-C0007-ERA180-05K
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PST-360 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 180° |
| Linear Range | - |
| Output | Analog |
| Output Signal | Clockwise Increase |
| Actuator Type | Hole for Shaft |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Cable |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Wire Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

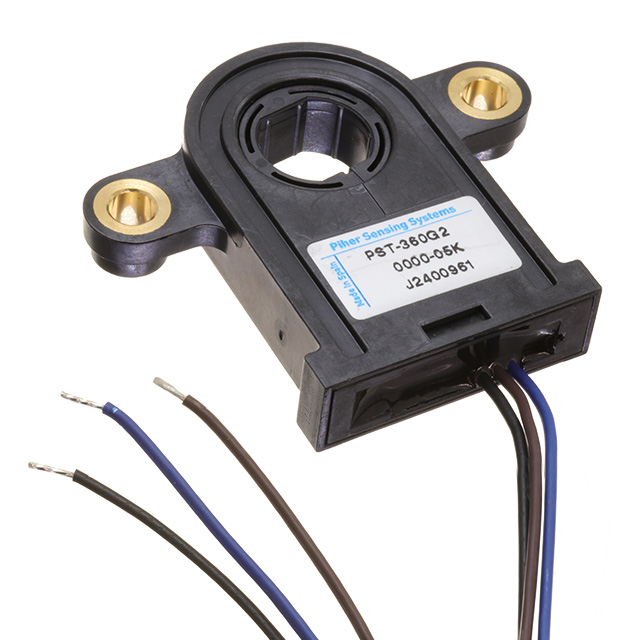

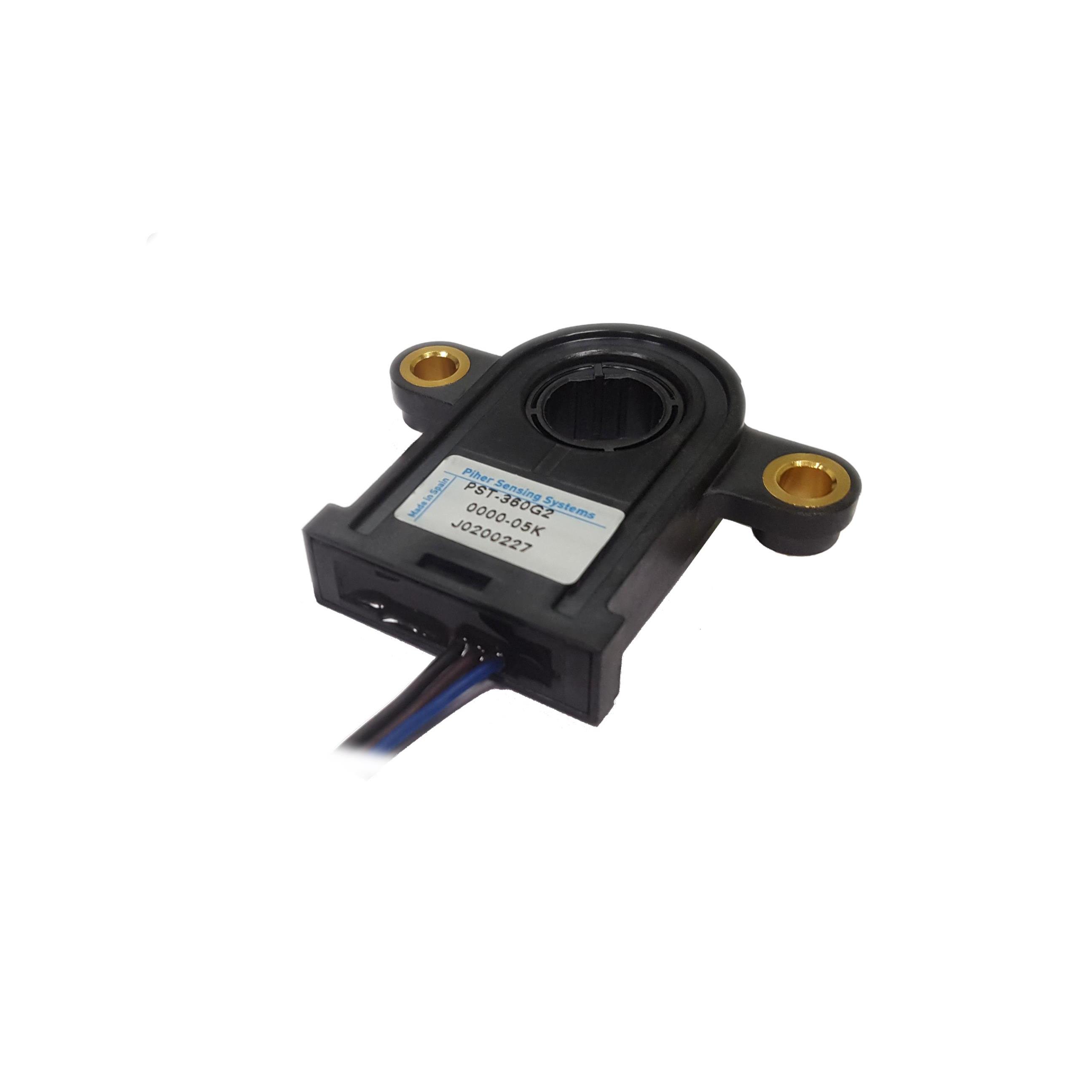

| Part Number | PST360G2-B-1A-C0000-ERA360-05K | PST360G2-B-1A-C0011-ERA090-05K | PST360G2-1A-C0000-ERA360-05K | PST360G2-1A-C0000-ERA360-RE |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | THROUGH HOLE MAGNETIC POSITION S | HALL-EFFECT THROUGH-SHAFT ROTARY | SENSOR ANGLE 360DEG WIRE LEADS | SENSOR ANGLE 360DEG WIRE LEADS |
| Series | PST360G2 | PST-360 | PST360G2 | PST360G2 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
