PT10LH01-253B2020
lmages are for reference only.PT10LH01-253B2020
TRIMMER 25KOHM 0.07W PC PIN SIDE
Datasheet-
75,323 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25 kOhms 0.07W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
PT10LH01-253B2020
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT-10 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Resistance | 25 kOhms |
| Power (Watts) | 0.07W |
| Tolerance | ±20% |
| Temperature Coefficient | ±300ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.406" Dia x 0.476" H (10.30mm x 12.10mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|

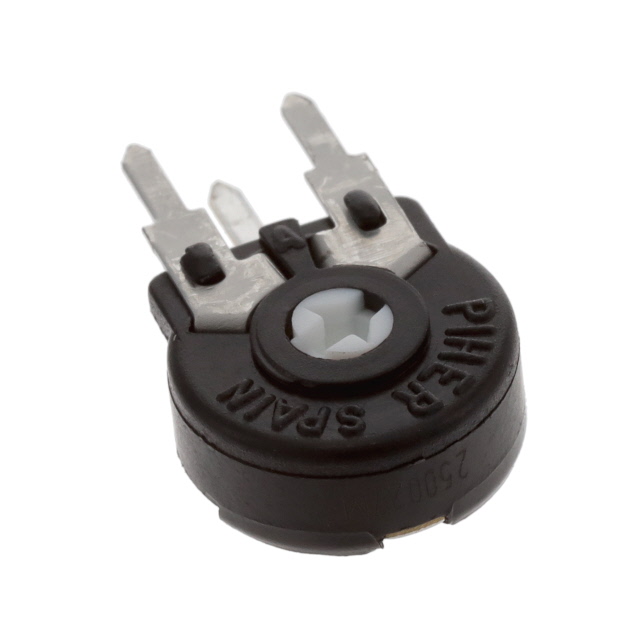

| Part Number | PT10LH01-251A2020 | PT10LH01-251A2020-PM-S | PT10LH01-251A2020-S | PT10LH01-252A2020-PM-S |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 250OHM 0.15W PC PIN SIDE | TRIMMER 250OHM 0.15W PC PIN SIDE | TRIMMER 250OHM 0.15W PC PIN SIDE | TRIMMER 2.5K OHM 0.15W PC PIN |
| Series | PT-10 | PT10 | PT10 | PT10 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
