PT22A012B

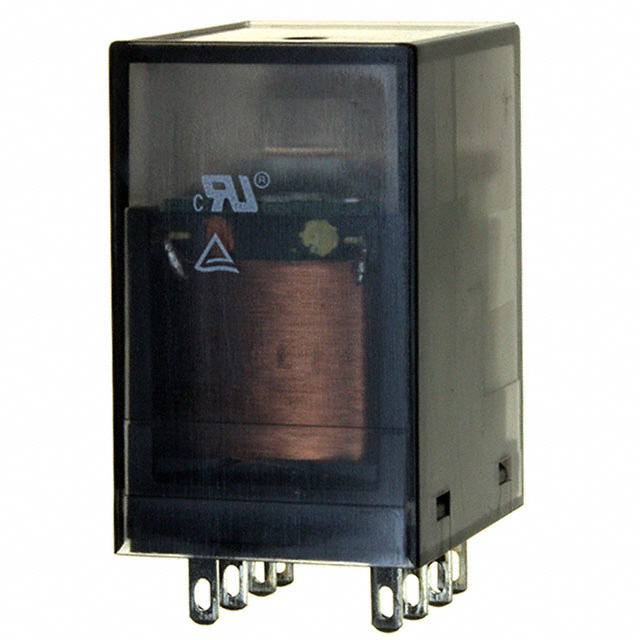

lmages are for reference only.PT22A012B
RELAY GEN PURPOSE DPDT 12A 12V
Datasheet-
93,087 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 12VDC Coil Socketable
PT22A012B
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PTH, SCHRACK |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 440VAC - Max |
| Load - Max Switching | 5280VA |
| Coil Current | 62.5 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 20 ms |
| Release Time | 20 ms |
| Operating Temperature | -45°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CQC, cURus, TUV |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 192 Ohms |
| Base Product Number | PT22A |
| Product Attribute |  |
 |
 |
 |
| Part Number | PT22A024B | PT22AL24B | PT22B012B | PT22B024B |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ||||
| Description | RELAY GEN PURPOSE DPDT 12A 24V | RELAY GEN PURPOSE DPDT 12A 24V | RELAY GEN PURPOSE DPDT 12A 12V | RELAY GEN PURPOSE DPDT 12A 24V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Bulk | Bulk | Bulk |
