Product CatalogPart Number
PT4402A
Manufacturer
Texas InstrumentsDescription
DC DC CONVERTER 1.05-1.75V 75W
Datasheet
DatasheetPackage
21-SIP Module
In Stock
35,790 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PT4402A
PT4402A
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 1.05 ~ 1.75V 20A 36V - 75V Input
Quick Inquiry
PT4402A
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Texas Instruments |
| Series | Excalibur™ PT4400 (75W) |
| Packaging | Tray |
| RoHS Status | RoHS non-compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 1.05 ~ 1.75V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 75 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 84% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole, Right Angle |
| Package / Case | 21-SIP Module |
| Size / Dimension | - |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PT4402 |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

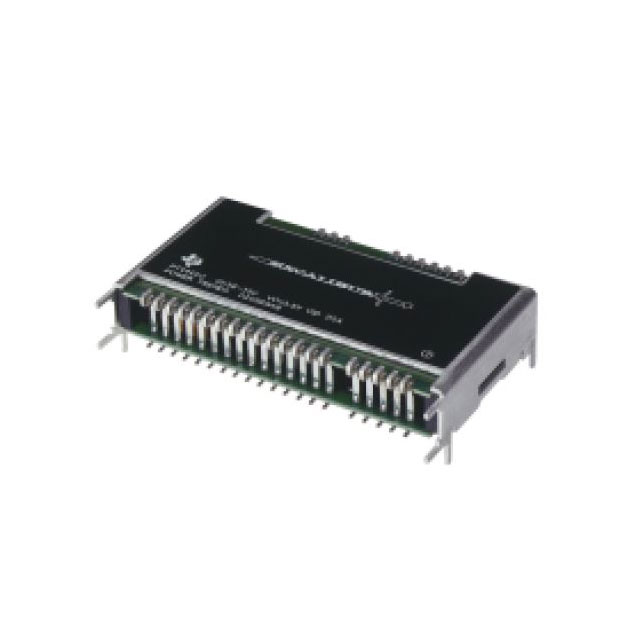

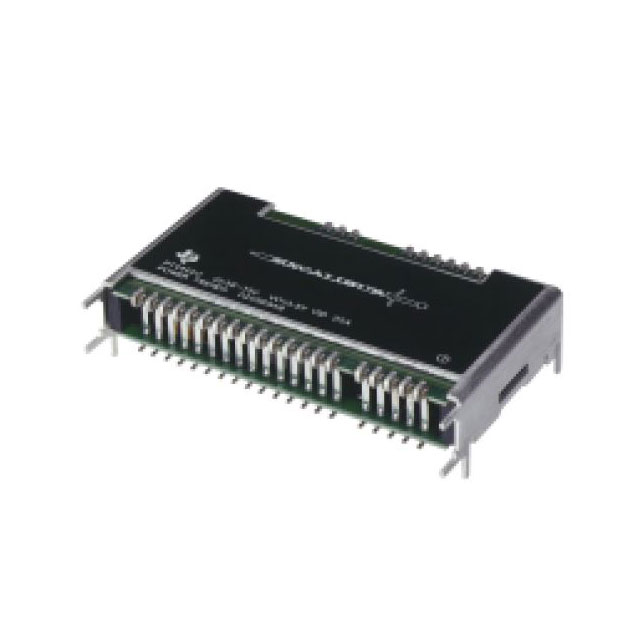

| Part Number | PT4403A | PT4403N | PT4411A | PT4411A |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.4-5.7V 75W | DC DC CONVERTER 3.4-5.7V 75W | DC DC CONVERTER 1.3-3.5V 100W | DC DC CONVERTER 1.3-3.5V 100W |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tray | Tray | Tray | Tray |
