Product CatalogPart Number
PT65126L254
Manufacturer
APEM Inc.Description
SW ROTARY DIP OCTAL 0.15A 24V
Datasheet
DatasheetPackage
-
In Stock
39,891 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PT65126L254
PT65126L254
lmages are for reference only.Payment Methods
Delivery Services
Dip Switch Octal 8 Position Through Hole, Right Angle Rotary for Tool Actuator 150mA 24VDC
Quick Inquiry
PT65126L254
Specifications
| Category | Switches - DIP Switches - |
| Manufacturer | APEM Inc. |
| Series | PT65 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | Octal |
| Number of Positions | 8 |
| Current Rating (Amps) | 150mA |
| Voltage Rating | 24VDC |
| Actuator Type | Rotary for Tool |
| Actuator Level | Flush, Recessed |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Height Above Board | 0.394" (10.00mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination Style | PC Pin |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | Sealed - Flux Protection |
| Operating Temperature | -20°C ~ 70°C |
| Body Material | Thermoplastic |
| Length | 0.394" (10.00mm) |
| Mechanical Life | 10,000 Cycles |
| Electrical Life | - |
| Base Product Number | PT65126 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PT65126L508 | PT65101 | PT65101L254 | PT65101L508 |
| Manufacturer | APEM Inc. | APEM Inc. | APEM Inc. | APEM Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SW ROTARY DIP OCTAL 0.15A 24V | SWITCH ROTARY DIP BCD 0.15A 24V | SWITCH ROTARY DIP BCD 0.15A 24V | SWITCH ROTARY DIP BCD 0.15A 24V |
| Series | PT65 | PT65 | PT65 | PT65 |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products

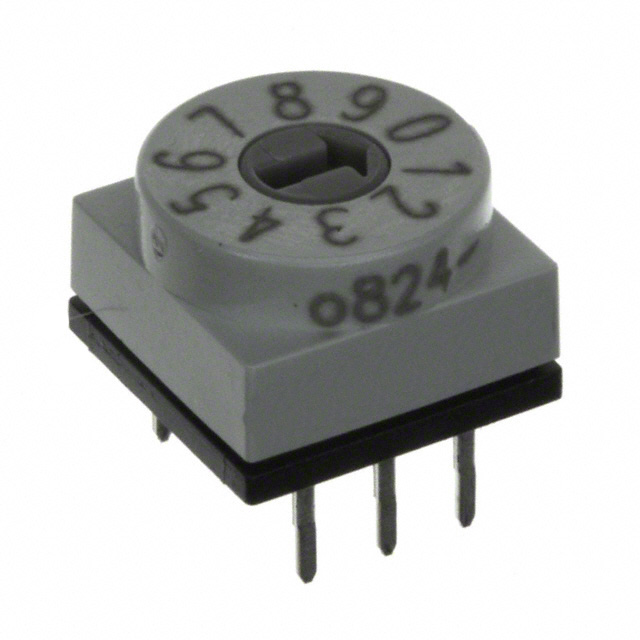

PT65101
APEM Inc.

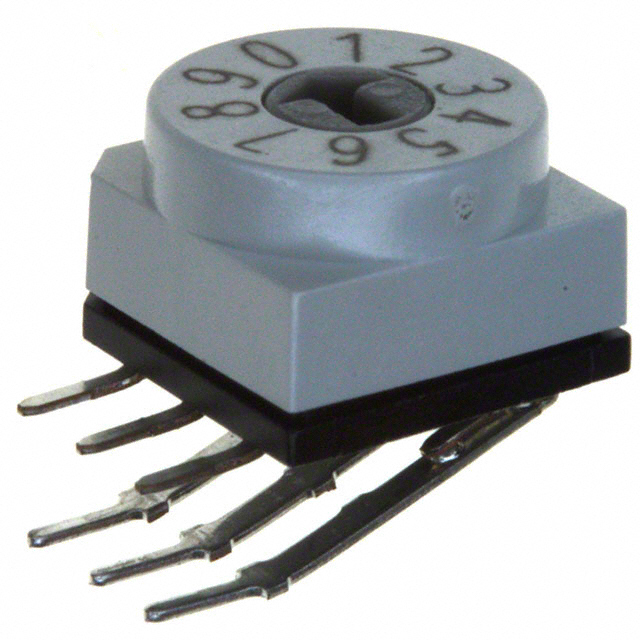

PT65101L254
APEM Inc.
PT65101L508
APEM Inc.
PT65102
APEM Inc.

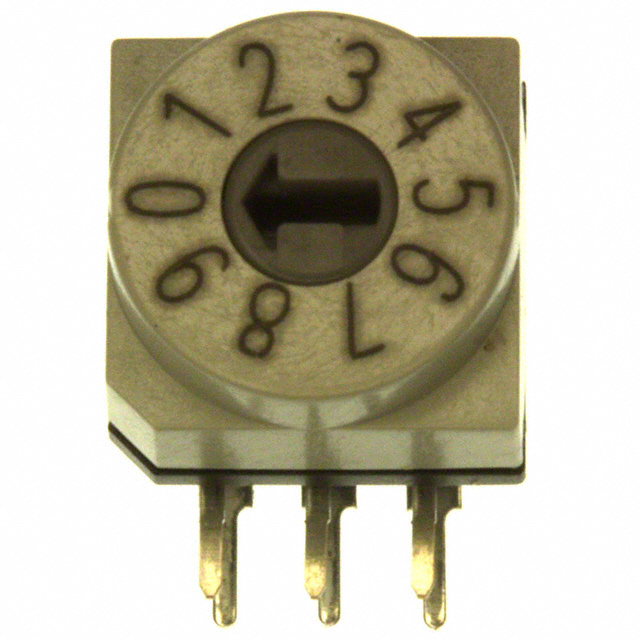

PT65102L254
APEM Inc.

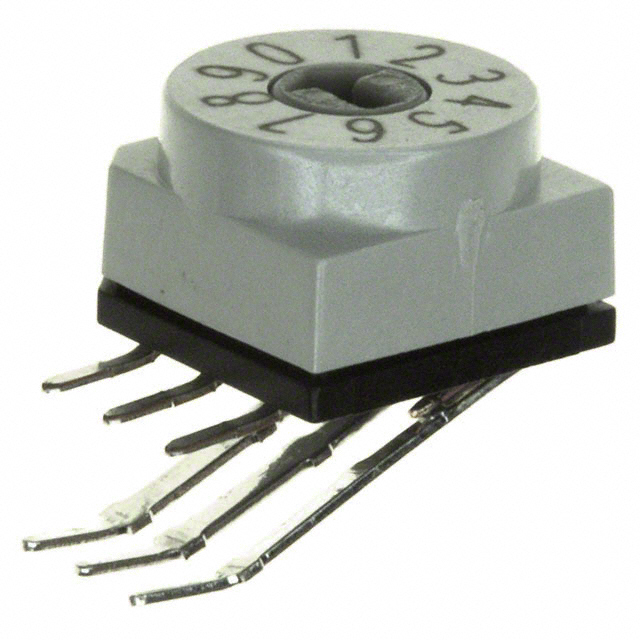

PT65102L508
APEM Inc.

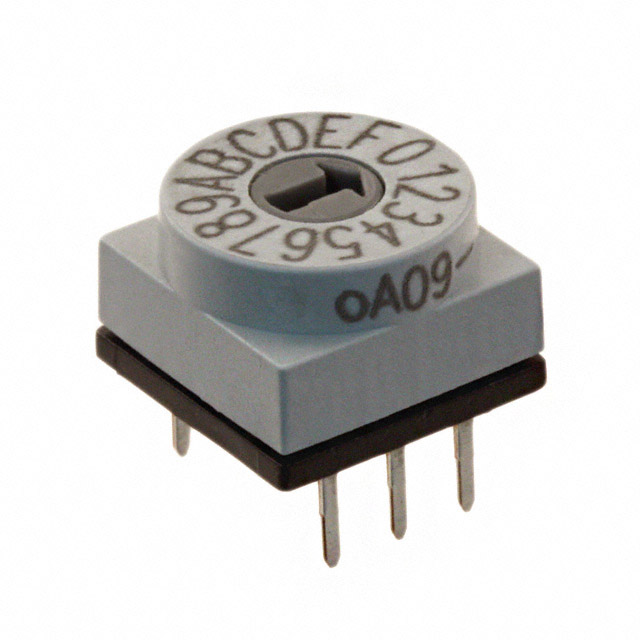

PT65103
APEM Inc.

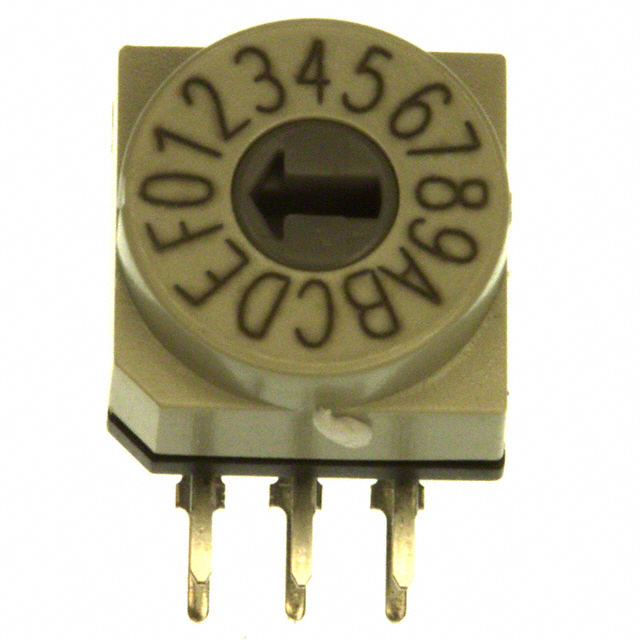

PT65103L254
APEM Inc.
PT65103L508
APEM Inc.
PT65105
APEM Inc.
PT65105L254
APEM Inc.
PT65105L508
APEM Inc.
PT65106
APEM Inc.

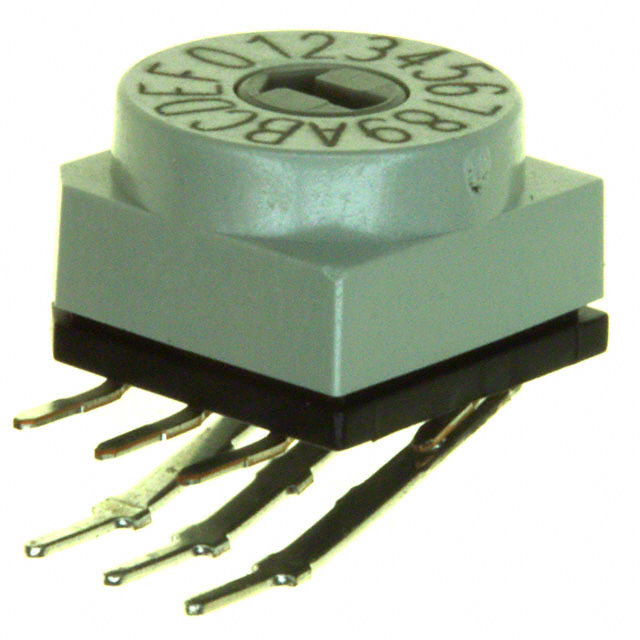

PT65106L254
