Product CatalogPart Number
PT6938C
Manufacturer
Texas InstrumentsDescription
DC DC CONVERTER 3.3V 1.2V
Datasheet
DatasheetPackage
23-SMD Module
In Stock
54,747 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

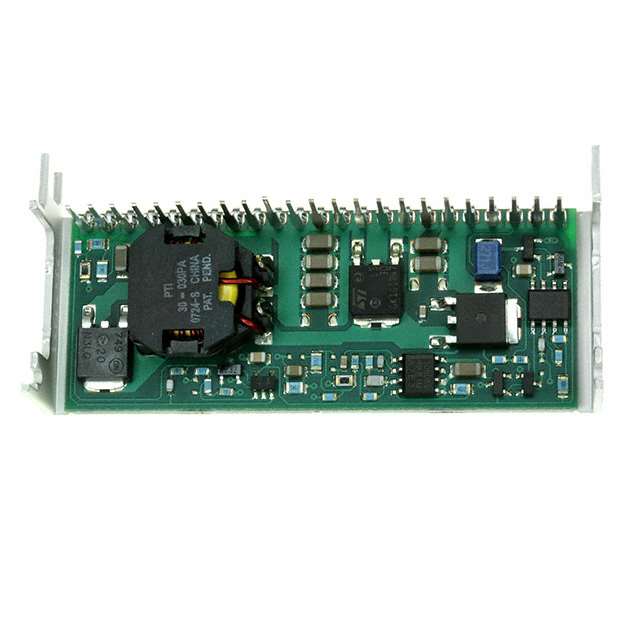

PT6938C
PT6938C
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 2 Output 3.3V 1.2V 8.6A, 1.6A 4.5V - 5.5V Input
Quick Inquiry
PT6938C
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Texas Instruments |
| Series | Excalibur™ PT6935 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 1.2V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8.6A, 1.6A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 79% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 23-SMD Module |
| Size / Dimension | 2.58" L x 1.19" W x 0.43" H (65.5mm x 30.2mm x 10.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PT6938 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

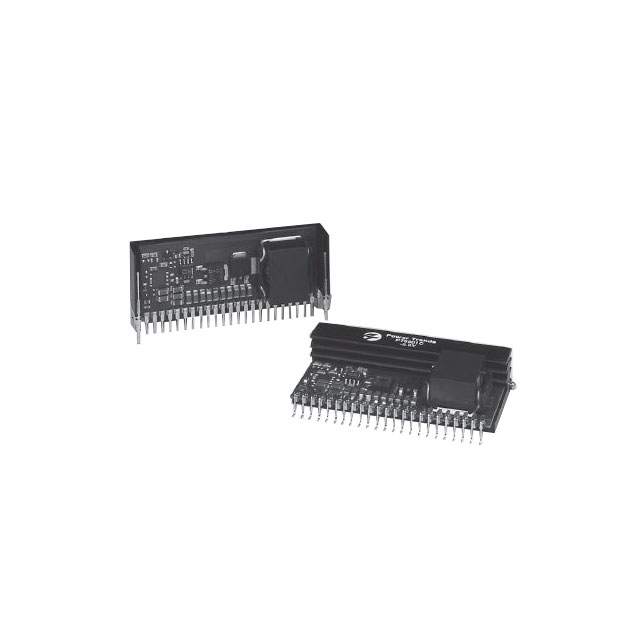

| Part Number | PT6901C | PT6902C | PT6905C | PT6905N |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER -2V | DC DC CONVERTER -5.2V | DC DC CONVERTER -5.2V 2.5A | DC DC CONVERTER -5.2V 2.5A |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tray | Tray | Tray | Tray |
