PT6KV-504A2020
lmages are for reference only.PT6KV-504A2020
TRIMMER 500K OHM 0.1W PC PIN TOP
Datasheet-
37,121 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
PT6KV-504A2020
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT-6 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 500 kOhms |
| Power (Watts) | 0.1W, 1/10W |
| Tolerance | ±20% |
| Temperature Coefficient | ±300ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.248" Dia (6.30mm) |
| Base Product Number | PT6KV |
| Product Attribute |  |
 |
 |
 |

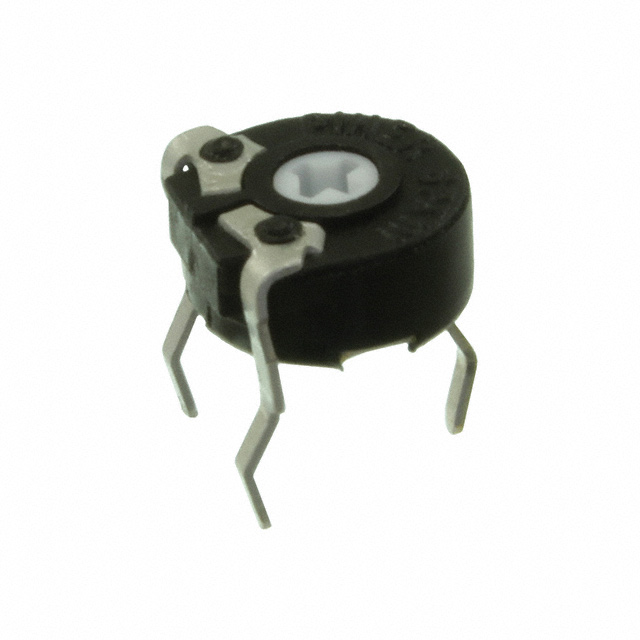

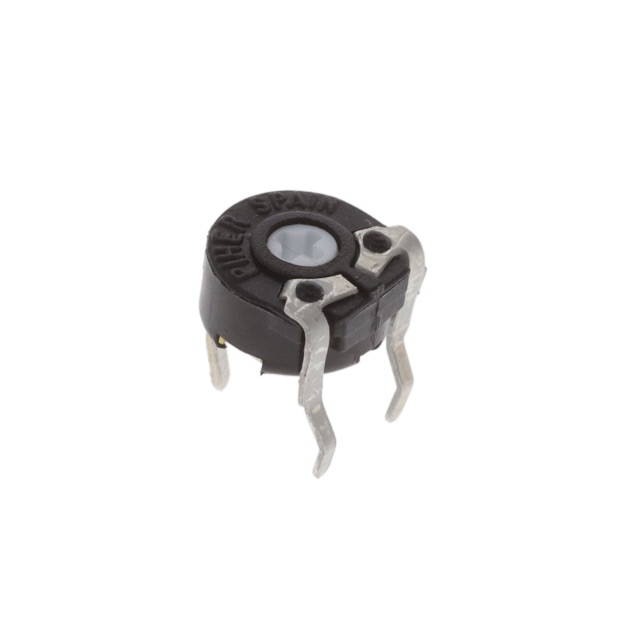

| Part Number | PT6KV-501A2020 | PT6KV-502A2020 | PT6KV-502A2020-PM | PT6KV-503A1010 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 500 OHM 0.1W PC PIN TOP | TRIMMER 5K OHM 0.1W PC PIN TOP | TRIMMER 5K OHM 0.1W PC PIN TOP | TRIMMER 50K OHM 0.1W PC PIN TOP |
| Series | PT-6 | PT-6 | PT-6 | PT-6 |
| Packaging | Bulk |
