PT6MV-504A2020
lmages are for reference only.PT6MV-504A2020
TRIMMER 500K OHM 0.1W PC PIN TOP
Datasheet-
98,797 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
PT6MV-504A2020
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PT-6 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 500 kOhms |
| Power (Watts) | 0.1W, 1/10W |
| Tolerance | ±20% |
| Temperature Coefficient | - |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.248" Dia (6.30mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

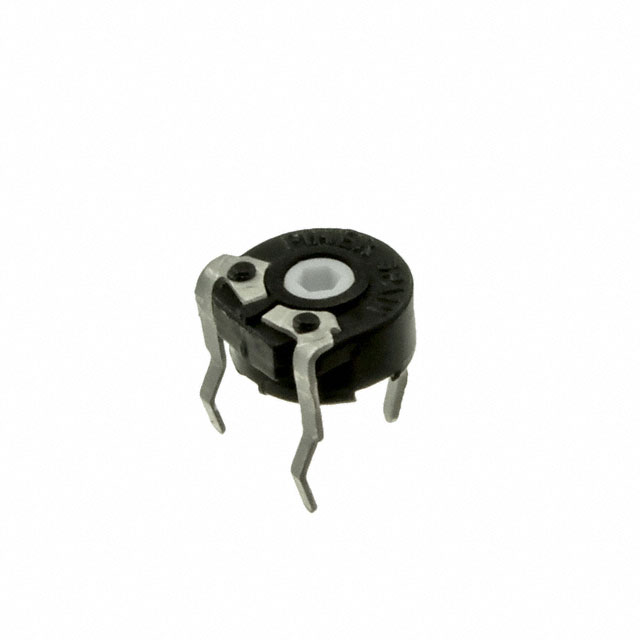

| Part Number | PT6MV-503A2020-PM | PT6MH-105A2020 | PT6MH-203A2020 | PT6MV-103A2020 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 50K OHM 0.1W PC PIN TOP | TRIMMER 1M OHM 0.1W PC PIN SIDE | TRIMMER 20K OHM 0.1W PC PIN SIDE | TRIMMER 10K OHM 0.1W PC PIN TOP |
| Series | PT-6 | PT-6 | PT-6 | PT-6 |
| Packaging | Bulk |
