Product CatalogPart Number
PT79SR105T
Manufacturer
Texas InstrumentsDescription
DC DC CONVERTER -5V
Datasheet
DatasheetPackage
3-SIP Module
In Stock
68,974 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PT79SR105T
PT79SR105T
lmages are for reference only.Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output -5V 1.5A -9V - -30V Input
Quick Inquiry
PT79SR105T
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Texas Instruments |
| Series | PT79SR100 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | -9V |
| Voltage - Input (Max) | -30V |
| Voltage - Output 1 | -5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.5A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | - |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PT79SR1 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PT79SR105H | PT79SR105S | PT79SR105V | PT79SR106S |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER -5V | DC DC CONVERTER -5V | DC DC CONVERTER -5V 1.5A | DC DC CONVERTER -6V 1.5A |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tray | Tray | Tray | Tray |
Customers Also Interested in
Recommended Products
PT79SR105H
Texas Instruments
PT79SR105S
Texas Instruments
PT79SR105V
Texas Instruments
PT79SR106S
Texas Instruments
PT79SR108H
Texas Instruments

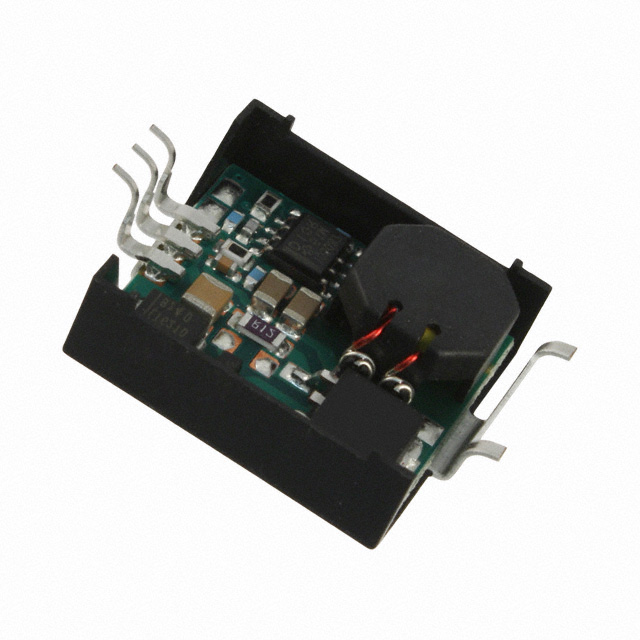

PT79SR108S
Texas Instruments
PT79SR108V
Texas Instruments
PT79SR109H
Texas Instruments
PT79SR109S
Texas Instruments
PT79SR112H
Texas Instruments
PT79SR112S
Texas Instruments
PT79SR112T
Texas Instruments
PT79SR112V
Texas Instruments

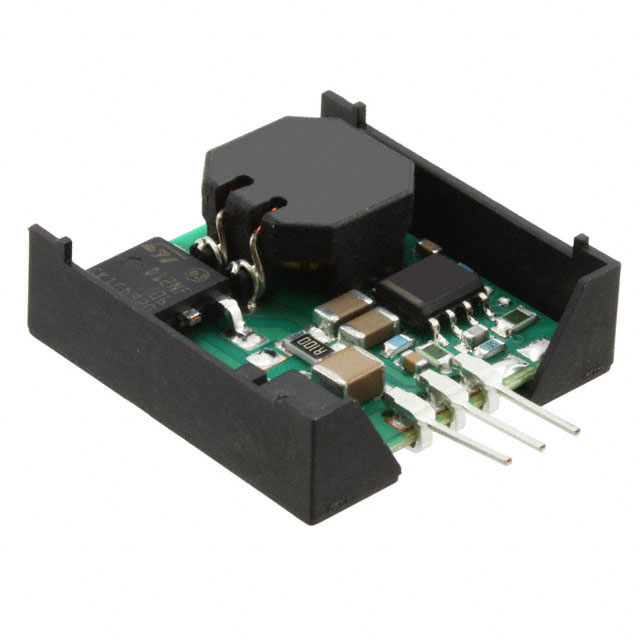

PT79SR115T
