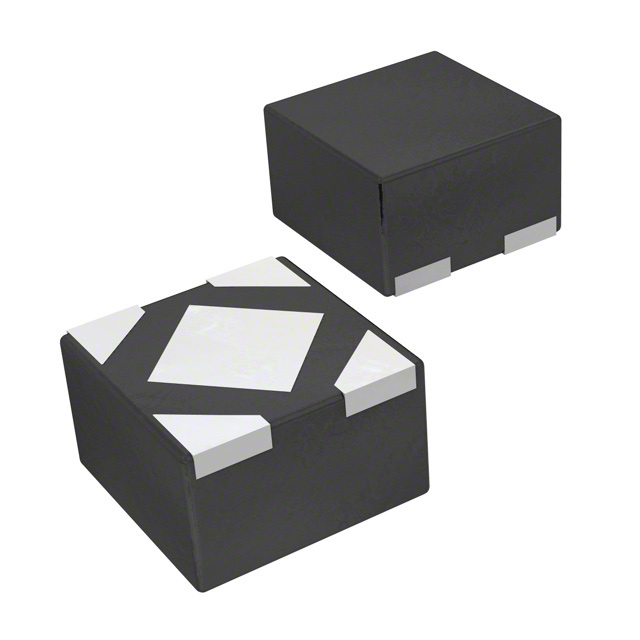

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 4-UDFN (0.8x0.8)
PT7M8216B09XYEX
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.18V @ 150mA (Typ) |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 65 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFDFN Exposed Pad |
| Supplier Device Package | 4-UDFN (0.8x0.8) |
| Base Product Number | PT7M8216 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PT7M8216B09XZEX | PT7M8216B10XZEX | PT7M8216B11XYEX | PT7M8216B11XZEX |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 0.9V 300MA 4UDFN | IC REG LINEAR 1V 300MA 4UDFN | IC REG LINEAR 1.1V 300MA 4UDFN | IC REG LINEAR 1.1V 300MA 4UDFN |
| Series | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
