PTC10LH01-503A2020
lmages are for reference only.PTC10LH01-503A2020
TRIMMER 50KOHM 0.33W PC PIN SIDE
Datasheet-
43,629 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50 kOhms 0.33W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Side Adjustment
PTC10LH01-503A2020
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PTC-10 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 50 kOhms |
| Power (Watts) | 0.33W |
| Tolerance | ±20% |
| Temperature Coefficient | ±100ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Cermet |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.406" Dia (10.30mm) |
| Base Product Number | PTC10LH01 |
| Product Attribute |  |
 |
 |
 |

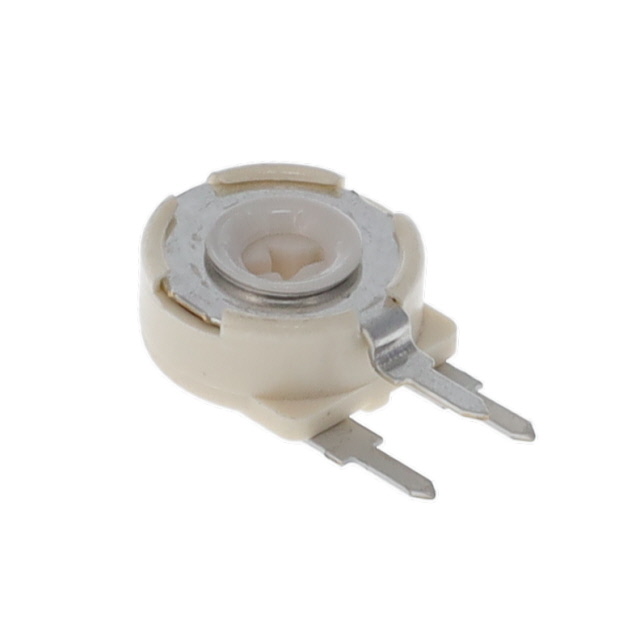

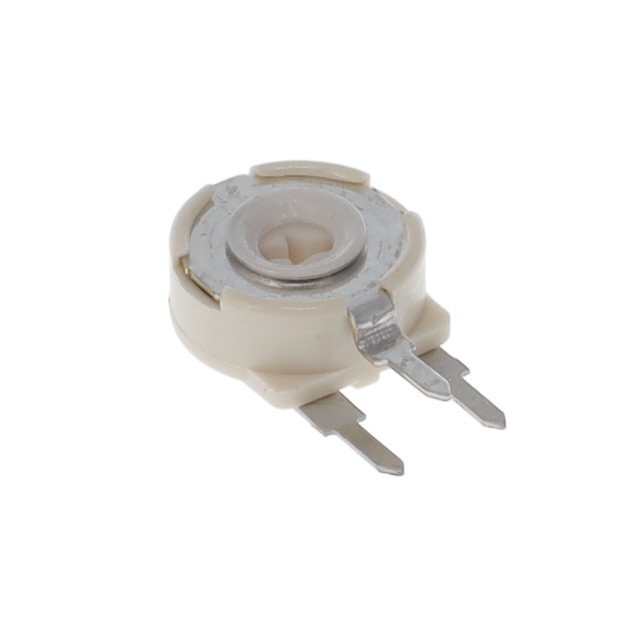

| Part Number | PTC10LH01-501A2020 | PTC10LH01-502A2020 | PTC10LH01-503A1010 | PTC10LH01-101A2020 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 500OHM 0.33W PC PIN SIDE | TRIMMER 5K OHM 0.33W PC PIN SIDE | TRIMMER 50KOHM 0.33W PC PIN SIDE | TRIMMER 100OHM 0.33W PC PIN SIDE |
| Series | PTC-10 | PTC-10 | PTC-10 | PTC-10 |
| Packaging | Bulk | Bulk | Bulk |
