PTC15LV02-253A2020
lmages are for reference only.PTC15LV02-253A2020
TRIMMER 25K OHM 0.5W PC PIN TOP
Datasheet-
35,539 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
25 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
PTC15LV02-253A2020
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PTC15 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Resistance | 25 kOhms |
| Power (Watts) | 0.5W, 1/2W |
| Tolerance | ±20% |
| Temperature Coefficient | ±100ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Cermet |
| Mounting Type | Through Hole |
| Termination Style | PC Pins |
| Size / Dimension | Round - 0.591" Dia (15.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

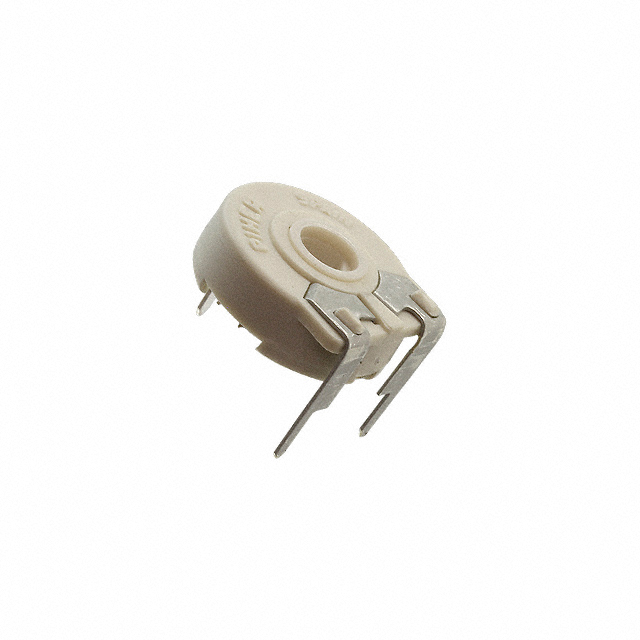

| Part Number | PTC15LV02-102A2020 | PTC15LV02-103A2020 | PTC10LH01-101A2020 | PTC10LH01-102A2020 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 1K OHM 0.5W PC PIN TOP | TRIMMER 10K OHM 0.5W PC PIN TOP | TRIMMER 100OHM 0.33W PC PIN SIDE | TRIMMER 1K OHM 0.33W PC PIN SIDE |
| Series | PTC15 | PTC15 | PTC-10 | PTC-10 |
| Packaging | Bulk | Bulk | Bulk |
