PTFA212001EV4R0XTMA1
lmages are for reference only.PTFA212001EV4R0XTMA1
RF MOSFET LDMOS 30V H-36260-2
Datasheet2-Flatpack, Fin Leads, Flanged
58,036 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 30 V 1.6 A 2.11GHz ~ 2.17GHz 15.8dB 200W H-36260-2
PTFA212001EV4R0XTMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | - |
| Packaging | Strip |
| RoHS Status | |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 2.11GHz ~ 2.17GHz |
| Gain | 15.8dB |
| Voltage - Test | 30 V |
| Current Rating (Amps) | 10µA |
| Noise Figure | - |
| Current - Test | 1.6 A |
| Power - Output | 200W |
| Voltage - Rated | 65 V |
| Mounting Type | - |
| Package / Case | 2-Flatpack, Fin Leads, Flanged |
| Supplier Device Package | H-36260-2 |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | PTFA212001EV4R250XTMA1 | PTFA212001EV4XWSA1 | PTFA212001F/1 P4 | PTFA210601EV4R250FTMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||

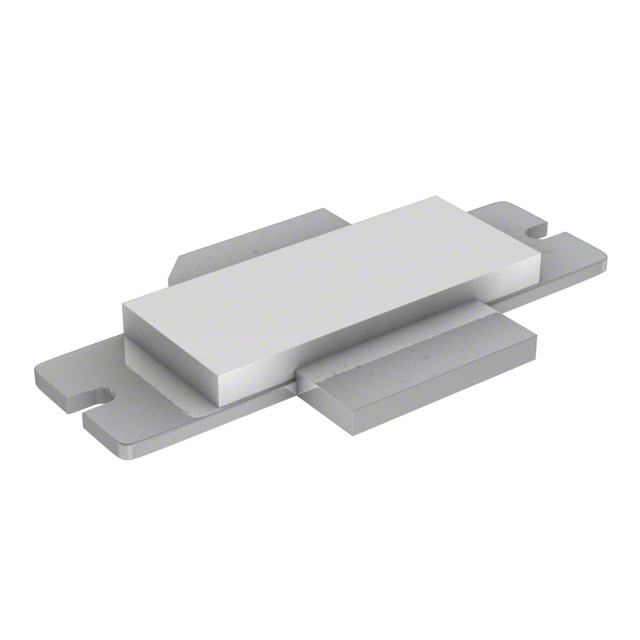

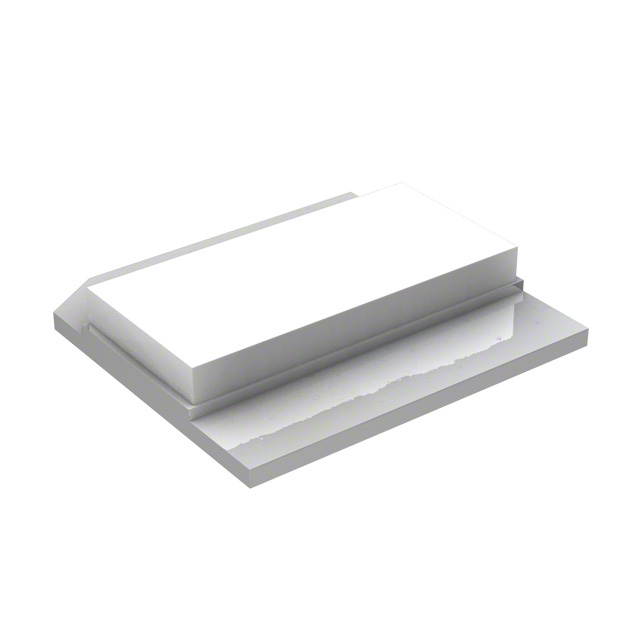

| Description | RF MOSFET LDMOS 30V H-36260-2 | RF MOSFET LDMOS 30V H-36260-2 | RF MOSFET LDMOS 30V H-37260-2 | RF MOSFET LDMOS 28V H-36265-2 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tray | Tape & Reel (TR) |
