PTFB192503EL-V1-R250

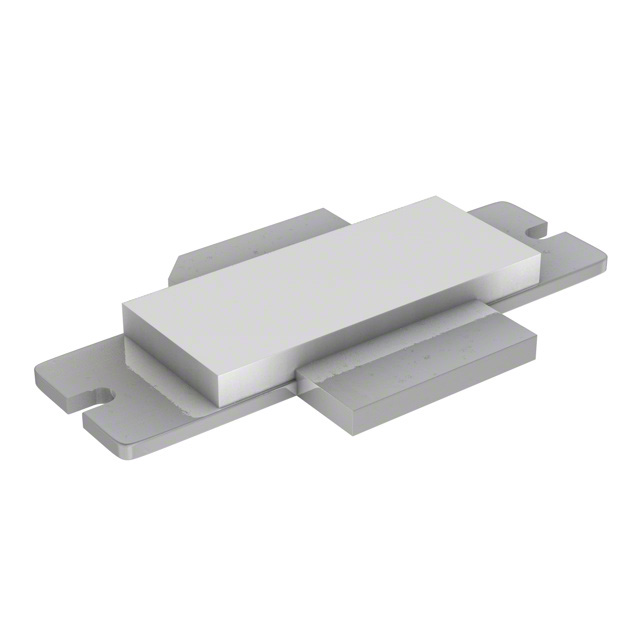

lmages are for reference only.PTFB192503EL-V1-R250
RF MOSFET LDMOS 30V H-33288-6
DatasheetH-33288-6
92,619 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Mosfet 30 V 1.9 A 1.99GHz 19dB 50W H-33288-6
PTFB192503EL-V1-R250
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Technology | LDMOS |
| Configuration | - |
| Frequency | 1.99GHz |
| Gain | 19dB |
| Voltage - Test | 30 V |
| Current Rating (Amps) | - |
| Noise Figure | - |
| Current - Test | 1.9 A |
| Power - Output | 50W |
| Voltage - Rated | 65 V |
| Mounting Type | Chassis Mount |
| Package / Case | H-33288-6 |
| Supplier Device Package | H-33288-6 |
| Base Product Number | PTFB192503 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
|
|
| Part Number | PTFB192503EL-V1-R0 | PTFB182503EL-V1-R0 | PTFB182503EL-V1-R250 | PTFB182503FL-V2-R0 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RF MOSFET LDMOS 30V H-33288-6 | RF MOSFET LDMOS 30V H-33288-6 | RF MOSFET LDMOS | RF MOSFET 30V H-33288-6 |
| Series | - | - | * | - |
| Packaging | Strip | Strip | Tape & Reel (TR) | Strip |
