PTH05020WAZ
lmages are for reference only.PTH05020WAZ

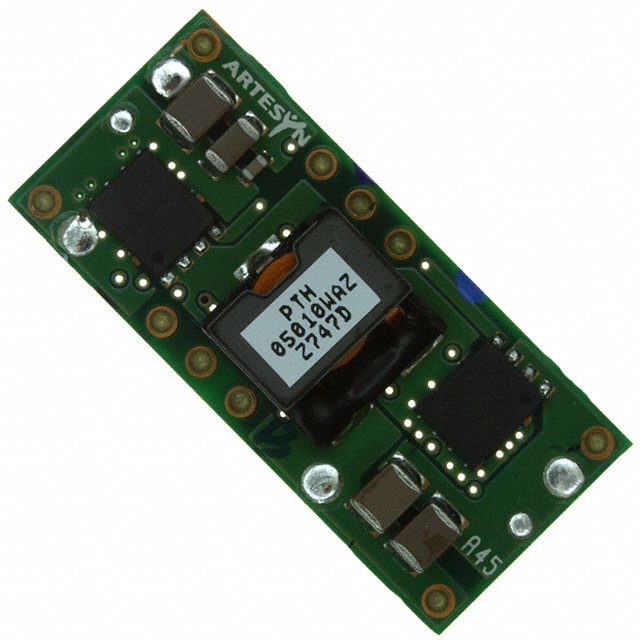

CONV DC/DC 5VIN ADJ OUT 22A SMD
Datasheet10-SMD Module
71,994 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 22A 4.5V - 5.5V Input
PTH05020WAZ
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | PTH05020W (79W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 0.8 ~ 3.6V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 22A |
| Power (Watts) | - |
| Applications | - |
| Features | UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PTH05020 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
|
| Part Number | PTH05020WAD | PTH05020WAD | PTH05020WAH | PTH05020WAH |
| Manufacturer | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments | ARTESYN / Advanced Energy |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 0.8-3.6V 79W | DC DC CONVERTER 0.8-3.6V 22A | DC DC CONVERTER 0.8-3.6V 22A | DC DC CONVERTER 0.8-3.6V 79W |
| Series | ARTESYN / Advanced Energy | Texas Instruments | Texas Instruments | ARTESYN / Advanced Energy |
| Packaging | Tray | Tray | Tray | Tray |
