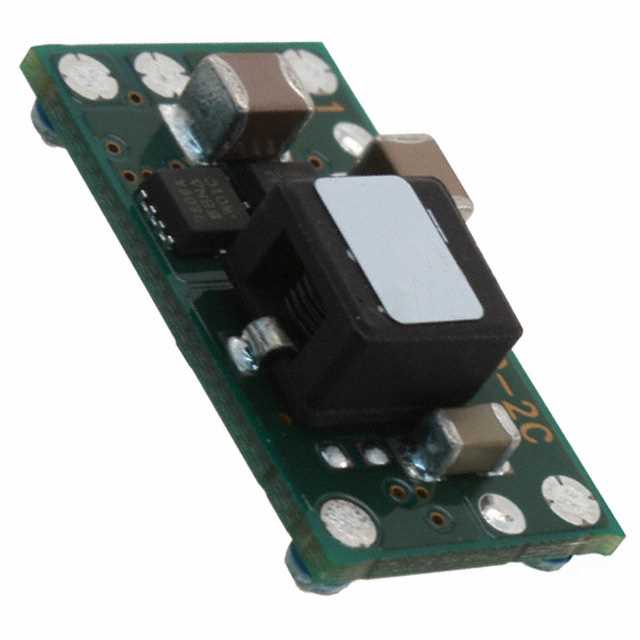

PTH12050LAZT
lmages are for reference only.PTH12050LAZT
DC DC CONVERTER 0.8-1.8V 33W
Datasheet6-SMD Module
23,319 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 1.8V 6A 10.8V - 13.2V Input
PTH12050LAZT
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | ARTESYN / Advanced Energy |
| Series | PTH12050 (33W) |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 0.8 ~ 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 33 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | - |
| Product Attribute |  |
|
|
 |
| Part Number | PTH12050LAZ | PTH12050LAZ | PTH12050LAZ | PTH12050LAZT |
| Manufacturer | Texas Instruments | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | Texas Instruments |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 0.8-1.8V 6A | DC DC CONVERTER 0.8-1.8V 11W | DC DC CONVERTER 0.8-1.8V 11W | DC DC CONVERTER 0.8-1.8V 6A |
| Series | Texas Instruments | ARTESYN / Advanced Energy | ARTESYN / Advanced Energy | Texas Instruments |
| Packaging | Tray | Tray | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
