PTN36502HQX

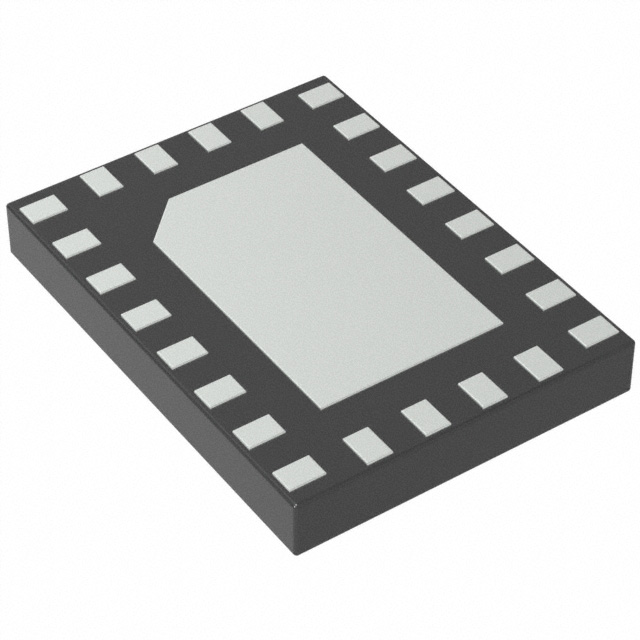

lmages are for reference only.PTN36502HQX
Type-C USB 3.1 Gen 1 and Display
Datasheet24-XFQFN Exposed Pad
51,734 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buffer, ReDriver Channel 5.4Gbps 24-HX2QFN (2.4x3.2)
PTN36502HQX
| Category | Integrated Circuits (ICs) - Interface - Signal Buffers-Repeaters-Splitters |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Buffer, ReDriver |
| Applications | USB Type C |
| Input | Differential |
| Output | Differential |
| Data Rate (Max) | 5.4Gbps |
| Number of Channels | - |
| Delay Time | 174ps |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
| Voltage - Supply | 1.7V ~ 1.9V |
| Current - Supply | 225mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | - |
| Package / Case | 24-XFQFN Exposed Pad |
| Supplier Device Package | 24-HX2QFN (2.4x3.2) |
| Base Product Number | - |
| Capacitance - Input | 10 pF |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |
| Part Number | PTN36502AHQX | PTN36502AHQX | PTN36502HQX | PTN36001HXAZ |
| Manufacturer | NXP Semiconductors | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | PTN36502AHQ - Type-C USB 3.1 Gen | IC REDRIVER USB 3.1 & DP 1.2 QFN | IC REDRIVER USB 3.1 & DP 1.2 QFN | IC REDRIVER USB 3.0 12X2QFN |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
