Product CatalogPart Number
PTS635SH43LFS
Manufacturer
C&KDescription
SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
DatasheetPackage
-
In Stock
42,940 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PTS635SH43LFS
PTS635SH43LFS
lmages are for reference only.Payment Methods
Delivery Services
Tactile Switch SPST-NO Top Actuated Through Hole
Quick Inquiry
PTS635SH43LFS
Specifications
| Category | Switches - Tactile Switches - |
| Manufacturer | C&K |
| Series | PTS635 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Contact Rating @ Voltage | 0.05A @ 12VDC |
| Actuator Type | Rectangular Button |
| Mounting Type | Through Hole |
| Actuator Height off PCB, Vertical | 4.30mm |
| Actuator Length, Right Angle | - |
| Actuator Orientation | Top Actuated |
| Termination Style | PC Pin |
| Outline | 6.10mm x 3.70mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Operating Force | 200gf |
| Ingress Protection | - |
| Features | - |
| Operating Temperature | -40°C ~ 60°C |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Switch Travel | - |
| Mechanical Life | 20,000 Cycles |
| Base Product Number | PTS635 |
Parts with Similar Specifications
| Product Attribute |  |
|
|
 |
| Part Number | PTS635SH43 | PTS635SH43SMTR | PTS635SH43SMTR LFS | PTS635SH43SMTRLFS |
| Manufacturer | C&K | C&K | C&K | C&K |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE SPST-NO 0.05A 12V | SWITCH TACTILE 3.5MM SPST NO | SWITCH TACTILE SPST-NO 0.05A 12V |
| Series | PTS635 | PTS635 | - | PTS635 |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
PTS635SH43
C&K
PTS635SH43SMTR
C&K
PTS635SH43SMTR LFS
C&K
PTS635SH43SMTRLFS
C&K

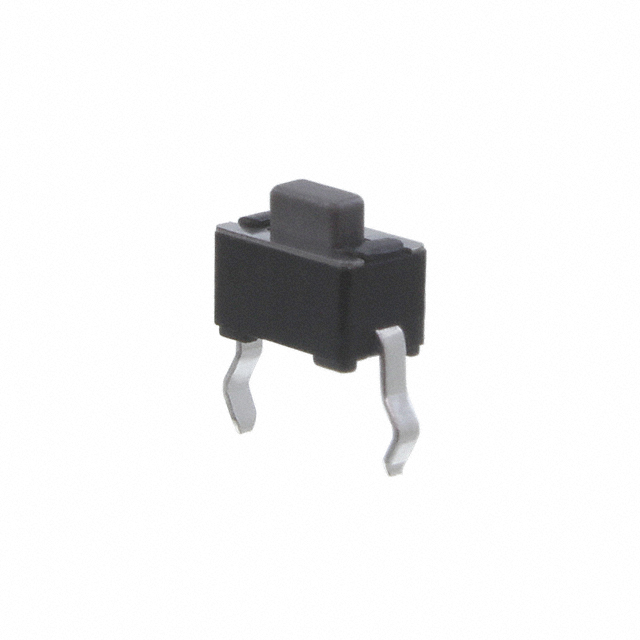

PTS635SH50LFS
C&K

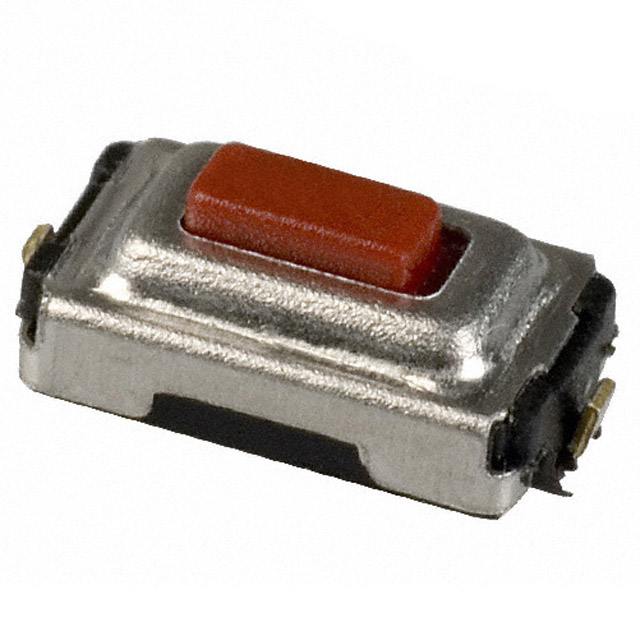

PTS635SK25SM
C&K
PTS635SK25SMTR LFS
C&K
PTS635SK43SMTRLFS
C&K
PTS635SL25SM LFS
C&K

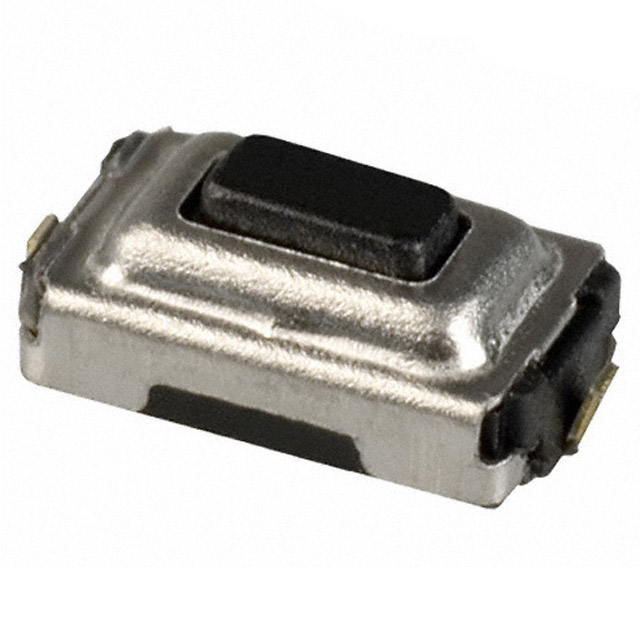

PTS635SL25SMTR
C&K
PTS635SL25SMTR LFS
C&K

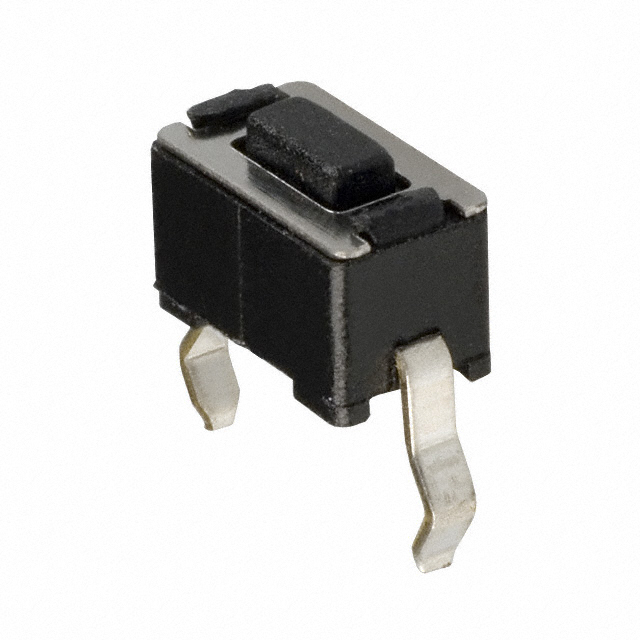

PTS635SL43
C&K
PTS635SL43 LFS
C&K

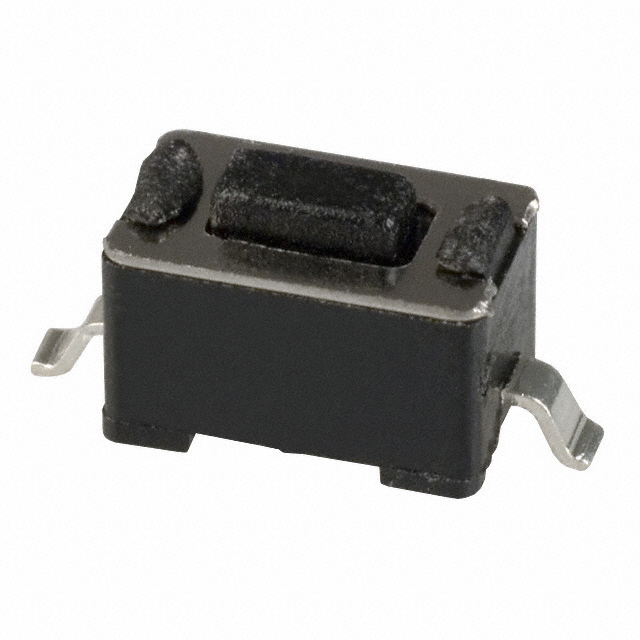

PTS635SL43SMTR
C&K
PTS635SL43SMTR LFS
C&K

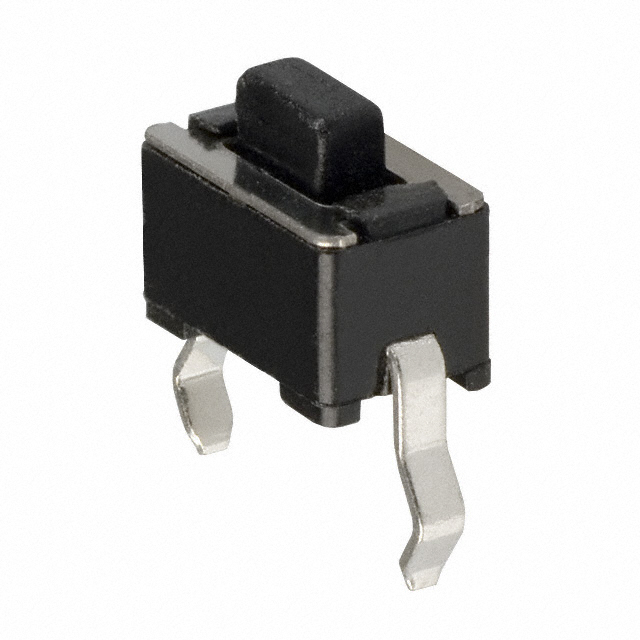

PTS635SL50
C&K

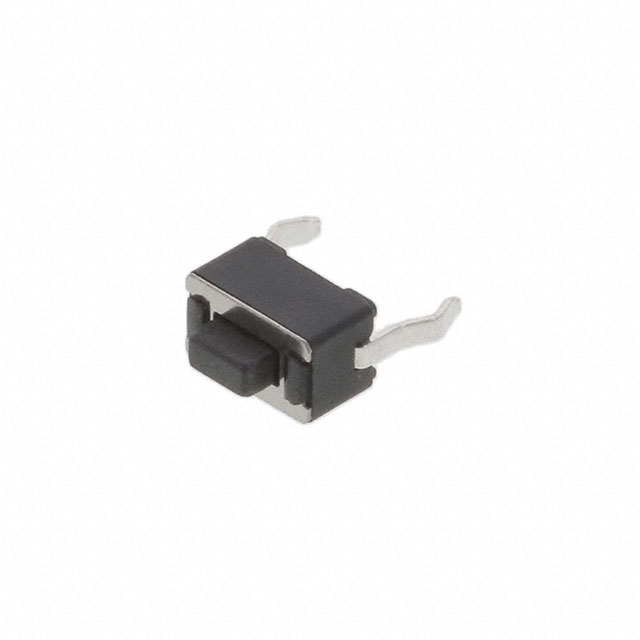

PTS635SL50 LFS
C&K

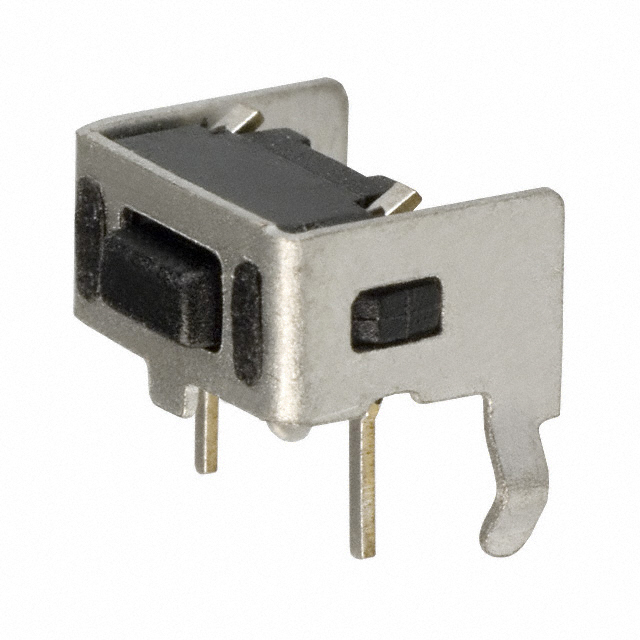

PTS635VH31
