PTVS10-076C
lmages are for reference only.PTVS10-076C
TVS DIODE 76VWM 160VC AXIAL
DatasheetAxial, Right Angle Bend (24.15mm Center)
56,569 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
160V Clamp 10000A (10kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
PTVS10-076C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Bourns Inc. |
| Series | PTVS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 76V (Max) |
| Voltage - Breakdown (Min) | 85V |
| Voltage - Clamping (Max) @ Ipp | 160V |
| Current - Peak Pulse (10/1000µs) | 10000A (10kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 8600pF @ 10kHz |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial |
| Base Product Number | PTVS10 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PTVS10-076C-M | PTVS10-076C-SH | PTVS10-076C-TH | PTVS10-058C |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

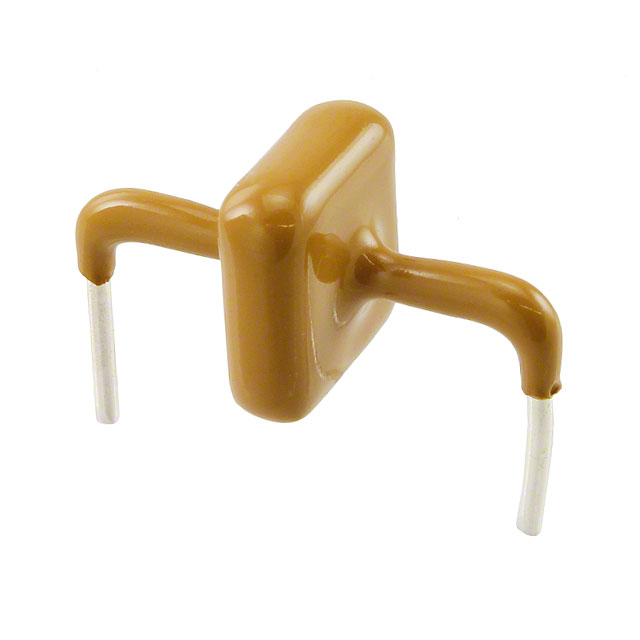

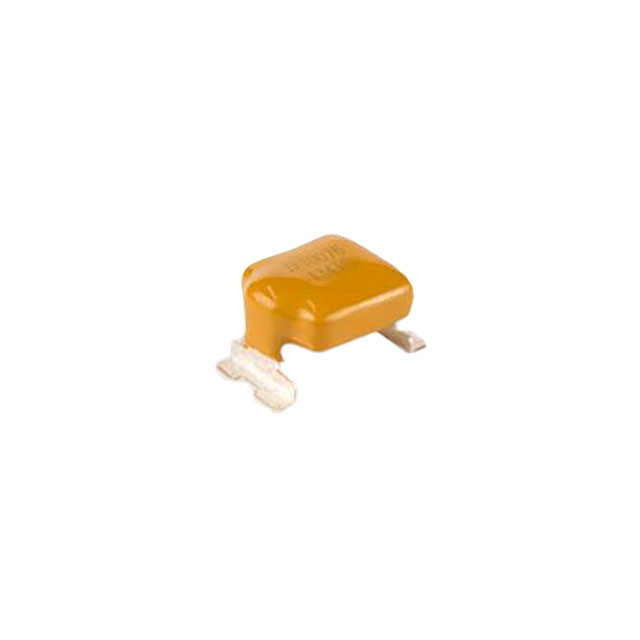

| Description | TVS DIODE 76VWM 135VC 2SMD | TVS DIODE 76VWM 140VC 2SMD | TVS DIODE 76VWM 140VC AXIAL | TVS DIODE 58VWM 130VC AXIAL |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tray | Bulk |
