PTVS6-058C
lmages are for reference only.PTVS6-058C
TVS DIODE 58VWM 110VC AXIAL
DatasheetAxial, Right Angle Bend (24.15mm Center)
14,761 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
110V Clamp 6000A (6kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
PTVS6-058C
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Bourns Inc. |
| Series | PTVS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 58V (Max) |
| Voltage - Breakdown (Min) | 64V |
| Voltage - Clamping (Max) @ Ipp | 110V |
| Current - Peak Pulse (10/1000µs) | 6000A (6kA) (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 4500pF @ 10kHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package | Axial |
| Base Product Number | PTVS6 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

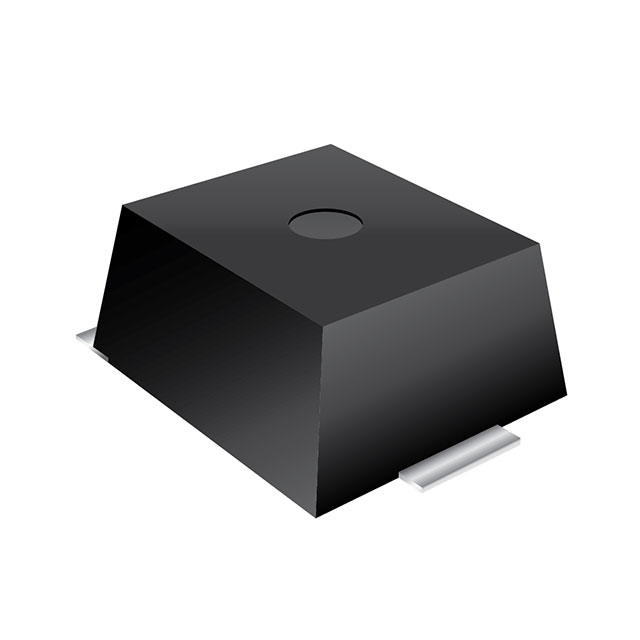

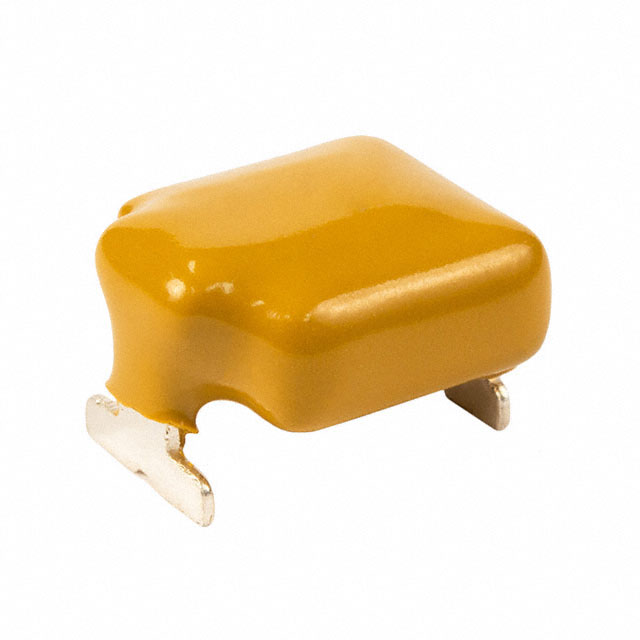

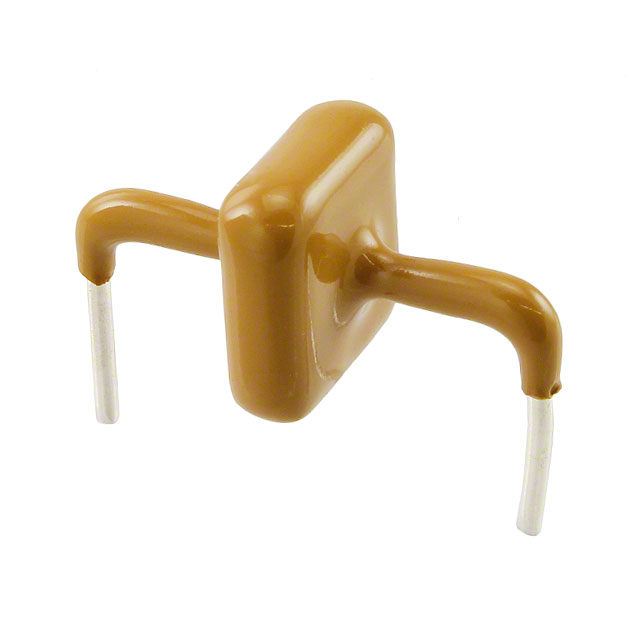

| Part Number | PTVS6-058C-SH | PTVS6-058C-TH | PTVS6-066C-M | PTVS6-076C |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 58VWM 110VC SMD | TVS DIODE 58VWM 110VC AXIAL | TVS DIODE 66VWM 120VC 2SMD | TVS DIODE 76VWM 140VC AXIAL |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tray | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
