PUC1218050D2BG

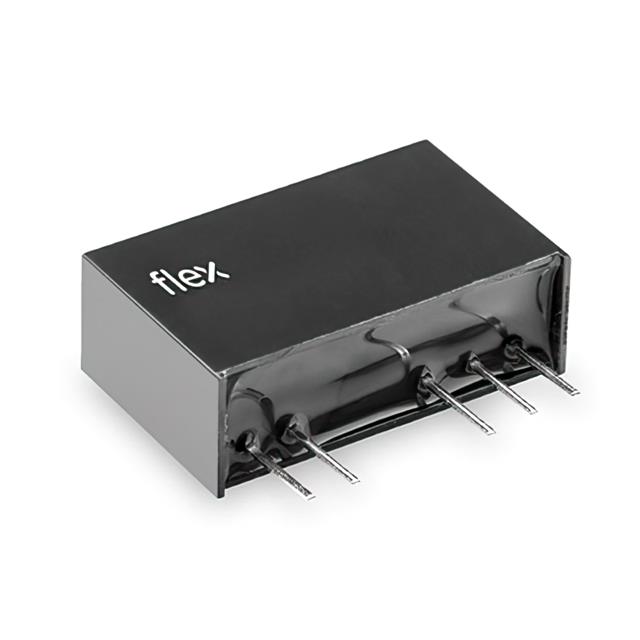

lmages are for reference only.PUC1218050D2BG
18V -5V DC/DC CONVERTERS ISOLATE
Datasheet7-SIP Module, 5 Leads
31,395 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 18V -5V 90mA, 90mA 10.8V - 13.2V Input
PUC1218050D2BG
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Flex Power Modules |
| Series | PUC-D2BG (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 18V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 90mA, 90mA |
| Power (Watts) | 2.07 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 78% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | cURus, UL |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 6.2 kV |
| Product Attribute |  |
 |
 |
 |

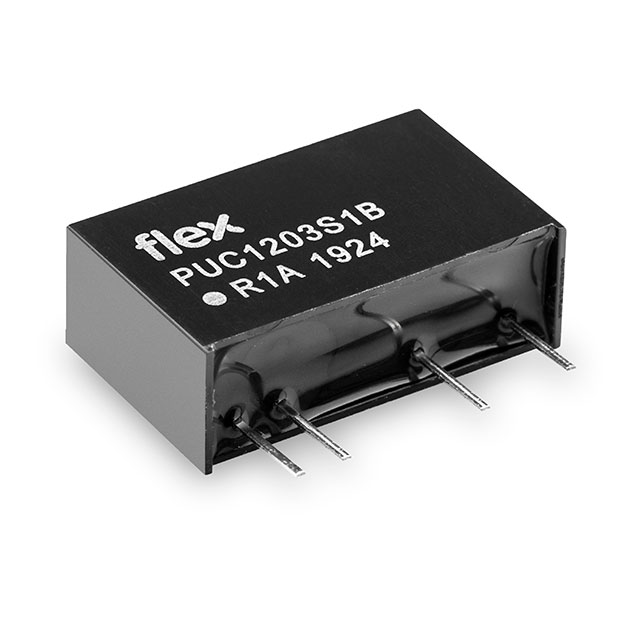

| Part Number | PUC1218025D2BG | PUC1218090D2BG | PUC1203S1B | PUC1205S1B |
| Manufacturer | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 18V -2.5V DC/DC CONVERTERS ISOLA | 18V -9V DC/DC CONVERTERS ISOLATE | DC DC CONVERTER 3.3V 1W | DC DC CONVERTER 5V 1W |
| Series | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| Packaging | Tube | Tube | Tube | Tube |
