PV-3A14LF

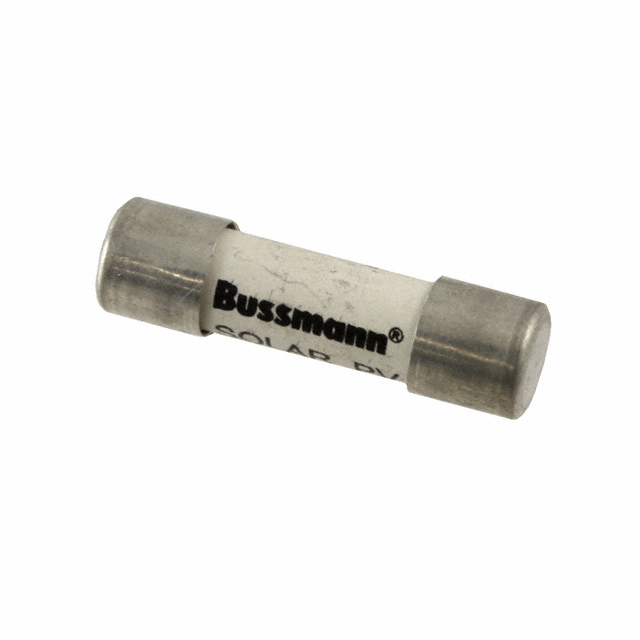

lmages are for reference only.PV-3A14LF
3 AMP 1500V DC SOLAR FERRULE FUS
DatasheetCartridge, Non-Standard
15,902 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3A 1.5 kVDC Fuse Cartridge Requires Holder
PV-3A14LF
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Bussmann Electrical Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 3A |
| Voltage Rating - AC | - |
| Response Time | Fast Blow |
| Applications | Solar (Photovoltaic) |
| Features | - |
| Class | gPV |
| Approval Agency | CCC, CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 10kA |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension | 0.559" Dia x 2.626" L (14.20mm x 66.70mm) |
| Base Product Number | - |
| Voltage Rating - DC | 1.5 kVDC |
| Grade | - |
| Qualification | - |
| Melting I²t | 8.0 |
| DC Cold Resistance | - |
| Product Attribute | |
|
|
|
| Part Number | PV-3A14LF10F | PV-3A10-1P | PV-3A10-2P | PV-3A10-T |
| Manufacturer | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | 3 AMP 1500V DC SOLAR FERRULE FUS | FUSE CARTRIDGE 3A 1KVDC RAD BEND | FUSE CARTRIDGE 3A 1KVDC RAD BEND | FUSE CARTRIDGE 3A 1KVDC CYLINDR |
| Series | - | PV | PV | PV |
| Packaging | Bulk | Bulk | Bulk | Bulk |
