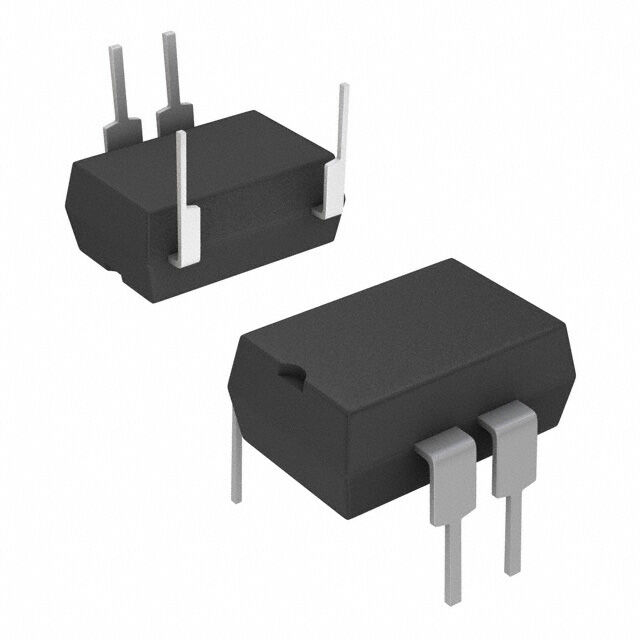

PVA3054NPBF
lmages are for reference only.PVA3054NPBF
PVA3054 - PHOTOVOLTAIC RELAY
Datasheet8-DIP (0.300", 7.62mm), 4 Leads
14,735 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 8-DIP (0.300", 7.62mm), 4 Leads
PVA3054NPBF
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | International Rectifier |
| Series | PVA, HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Through Hole |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 300 V |
| Load Current | 50 mA |
| Termination Style | PC Pin |
| Operating Temperature | - |
| Package / Case | 8-DIP (0.300", 7.62mm), 4 Leads |
| Supplier Device Package | 8-DIP Modified |
| Approval Agency | - |
| Grade | - |
| Qualification | - |
| Base Product Number | PVA305 |
| On-State Resistance (Max) | 160 Ohms |
| Product Attribute | |
 |
 |
 |

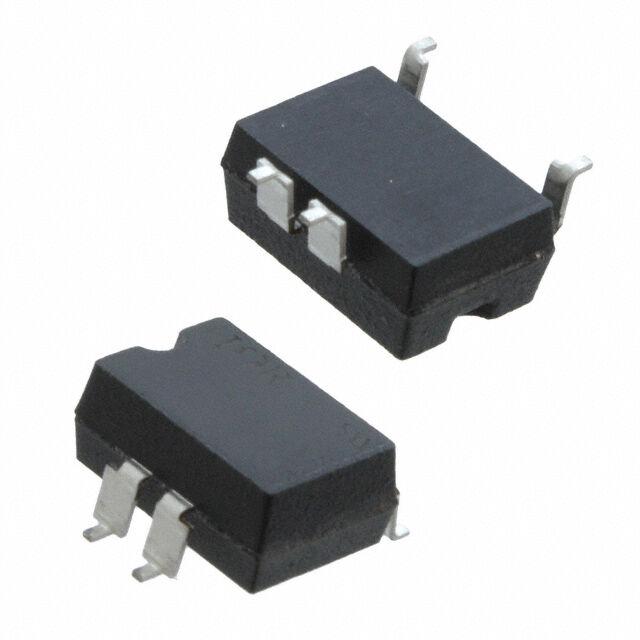

| Part Number | PVA3054NPBF | PVA3054N | PVA3054NS | PVA3054NS-TPBF |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 50MA 0-300V | SSR RELAY SPST-NO 50MA 0-300V | SSR RELAY SPST-NO 50MA 0-300V | SSR RELAY SPST-NO 50MA 0-300V |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
