PVH-10V271MH80E-R2

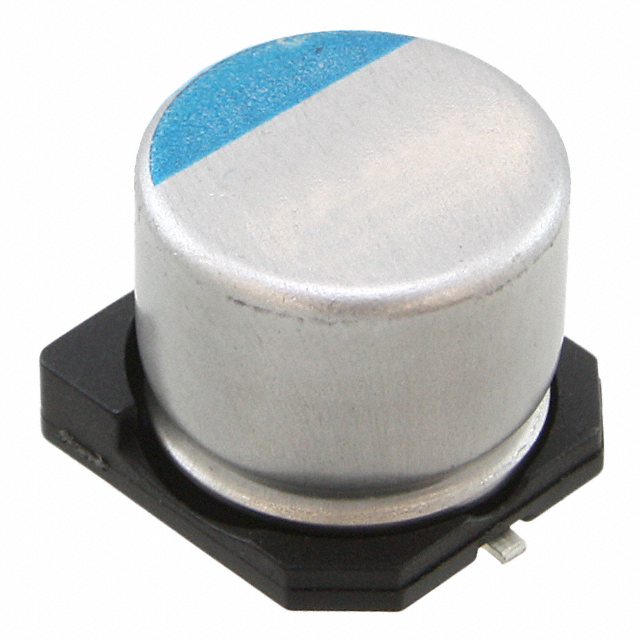

lmages are for reference only.PVH-10V271MH80E-R2
CAP ALUM POLY 270UF 20% 10V SMD
DatasheetRadial, Can - SMD
51,217 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
270 µF 10 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 2000 Hrs @ 105°C
PVH-10V271MH80E-R2
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Elna America |
| Series | PVH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.77 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PVH-10V121MG70E-R2 | PVH-10V151MG70E-R2 | PVH-10V331MH80E-R2 | PVH-10V470MF60E-R2 |
| Manufacturer | Elna America | Elna America | Elna America | Elna America |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 120UF 20% 10V SMD | CAP ALUM POLY 150UF 20% 10V SMD | CAP ALUM POLY 330UF 20% 10V SMD | CAP ALUM POLY 47UF 20% 10V SMD |
| Series | PVH | PVH | PVH | PVH |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
