PVM-16V101MG70E-R2

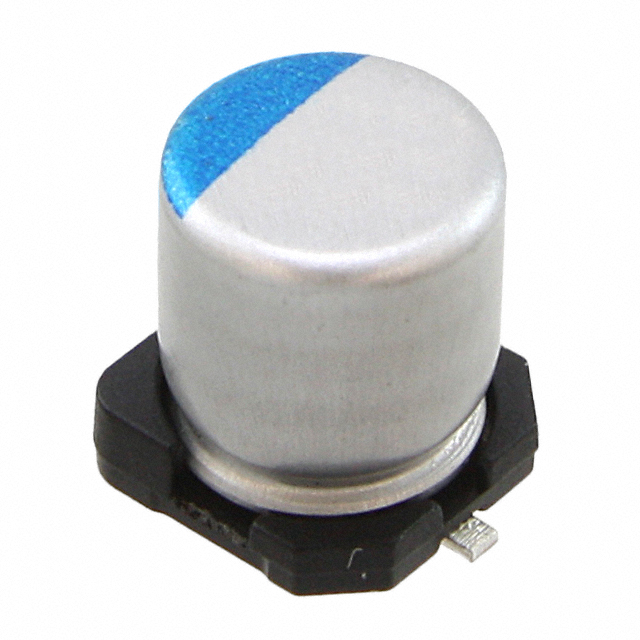

lmages are for reference only.PVM-16V101MG70E-R2
CAP ALUM POLY 100UF 20% 16V SMD
DatasheetRadial, Can - SMD
97,887 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 2000 Hrs @ 105°C
PVM-16V101MG70E-R2
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Elna America |
| Series | PVM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.01 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.331" L x 0.331" W (8.40mm x 8.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PVM-16V121MG70E-R2 | PVM-10V221MG70E-R2 | PVM-10V271MG70E-R2 | PVM-10V470ME60E-R2 |
| Manufacturer | Elna America | Elna America | Elna America | Elna America |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 120UF 20% 16V SMD | CAP ALUM POLY 220UF 20% 10V SMD | CAP ALUM POLY 270UF 20% 10V SMD | CAP ALUM POLY 47UF 20% 10V SMD |
| Series | PVM | PVM | PVM | PVM |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
