Product CatalogPart Number
PW2E220MCE1212F3
Manufacturer
Chinsan (Elite)Description
CAP ALUM 22UF 20% 250V RADIAL TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
21,957 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PW2E220MCE1212F3
PW2E220MCE1212F3
lmages are for reference only.Payment Methods
Delivery Services
22 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Quick Inquiry
PW2E220MCE1212F3
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | PW |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

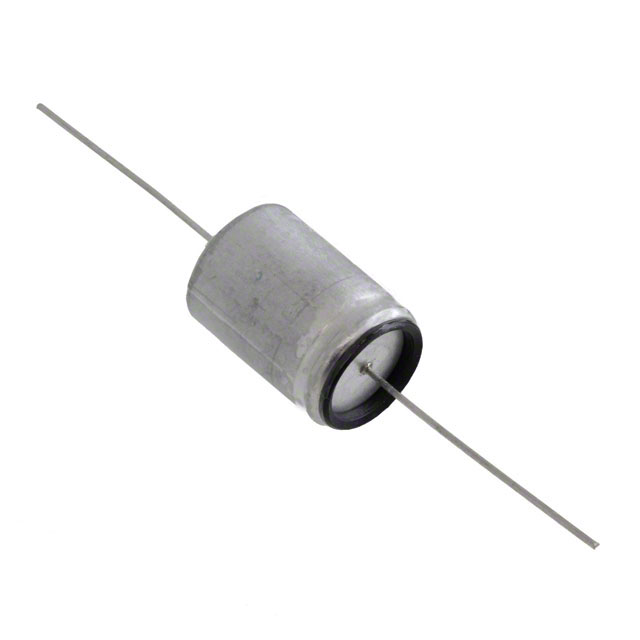

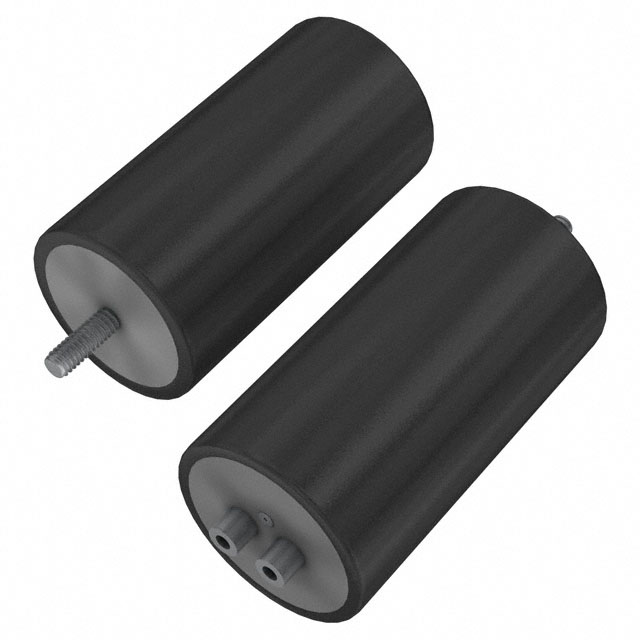

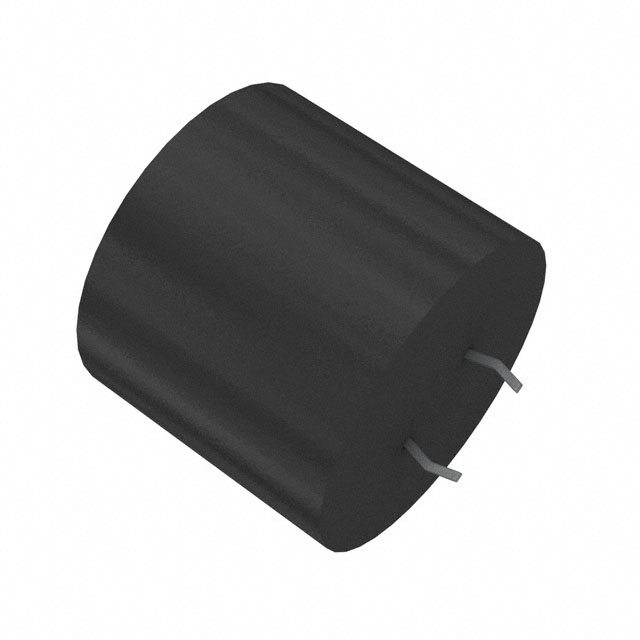

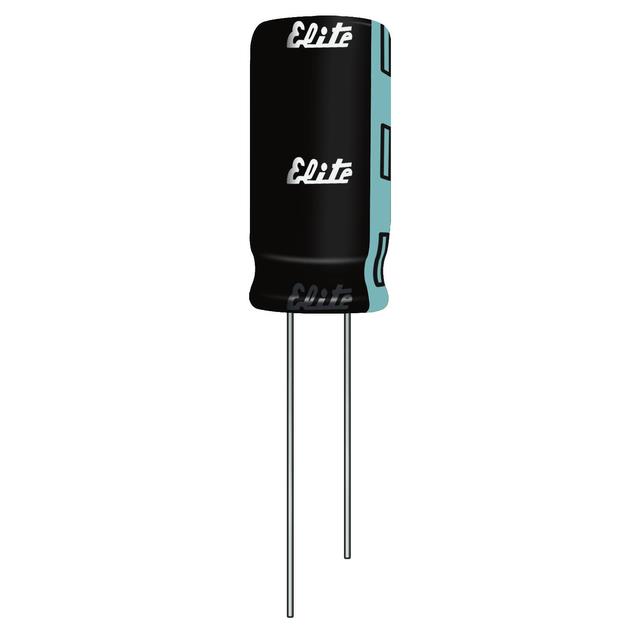

| Part Number | PW2E221MNN1830 | PEH534YDC3220M2 | PEG130KH4200QE4 | PEH169UV447BQB2 |
| Manufacturer | Chinsan (Elite) | KEMET | KEMET | KEMET |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 220UF 20% 250V RADIAL | CAP ALUM 220UF 20% 450V SNAP TH | CAP ALUM 2000UF 40V AXIAL TH | CAP ALUM 4700UF 350V SCREW CHAS |
| Series | Chinsan (Elite) | KEMET | KEMET | KEMET |
| Packaging | Bulk | Bulk | Bulk | Bulk |
