Product CatalogPart Number
PX2W331MRD2545
Manufacturer
Chinsan (Elite)Description
CAP ALUM 330UF 20% 450V RADIAL
Datasheet
DatasheetPackage
Radial, Can
In Stock
57,630 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PX2W331MRD2545
PX2W331MRD2545
lmages are for reference only.Payment Methods
Delivery Services
330 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Quick Inquiry
PX2W331MRD2545
Specifications
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | PX |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.52 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.174 A @ 50 kHz |
| Lead Spacing | 0.315" (8.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | PX2W331M7T2260 | PX2W331MRD2545 | PX2W101MRD2225 | PX2W271MRD2540 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

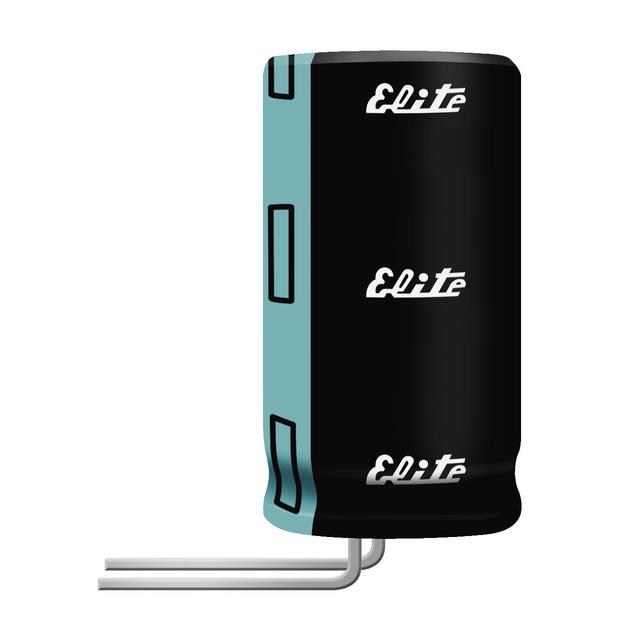

| Description | CAP ALUM 330UF 20% 450V RADIAL | CAP ALUM 330UF 20% 450V RADIAL | CAP ALUM 100UF 20% 450V RADIAL | CAP ALUM 270UF 20% 450V RADIAL |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
