Product CatalogPart Number
PY1112C-TR
Manufacturer
Stanley Electric CoDescription
LED GREEN DIFFUSED 1608 SMD
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
46,313 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PY1112C-TR
PY1112C-TR
lmages are for reference only.Payment Methods
Delivery Services
Green 572nm LED Indication - Discrete 2.1V 0603 (1608 Metric)
Quick Inquiry
PY1112C-TR
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Stanley Electric Co |
| Series | 1112C |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Color | Green |
| Configuration | Standard |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 11.7mcd |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Viewing Angle | 147°, 152° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm |
| Wavelength - Peak | 570nm |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 1608 |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.55mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

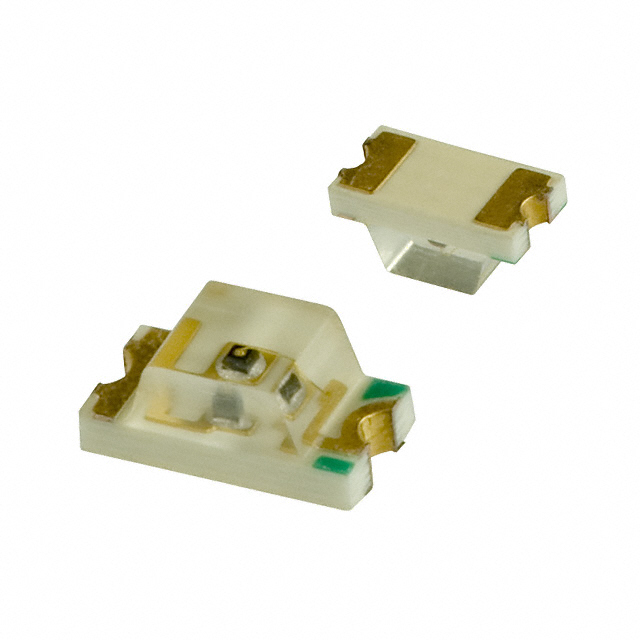

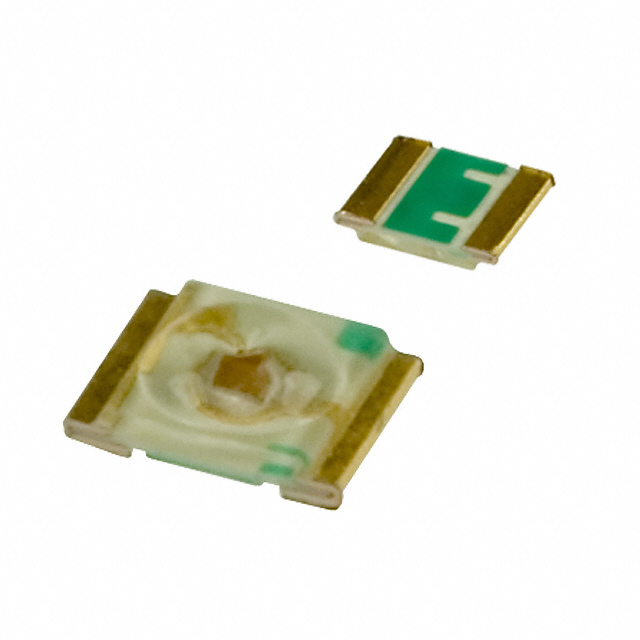

| Part Number | PY1101F-TR | PY1101W-TR | PY1102W-TR | PY1105CK-TR |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | LED GREEN CLEAR SMD R/A | LED GREEN CLEAR 3216 SMD | LED GREEN CLEAR 3216 SMD | LED GREEN CLR WIDE ANGLE LED SMD |
| Series | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
