Q 32,0-JXS11P4-8-10/30-T2-FU-AEC-LF
lmages are for reference only.Q 32,0-JXS11P4-8-10/30-T2-FU-AEC-LF
CRYSTAL 32.0000MHZ 8PF SMD
Datasheet4-SMD, No Lead
19,267 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
32 MHz ±10ppm Crystal 8pF 80 Ohms 4-SMD, No Lead
Q 32,0-JXS11P4-8-10/30-T2-FU-AEC-LF
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Jauch Quartz |
| Series | JXS11P4 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 32 MHz |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±10ppm |
| Load Capacitance | 8pF |
| ESR (Equivalent Series Resistance) | 80 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.063" L x 0.047" W (1.60mm x 1.20mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

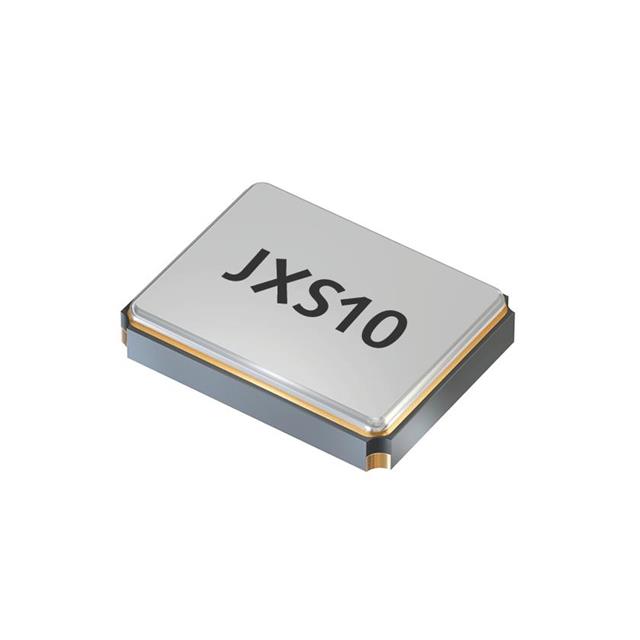

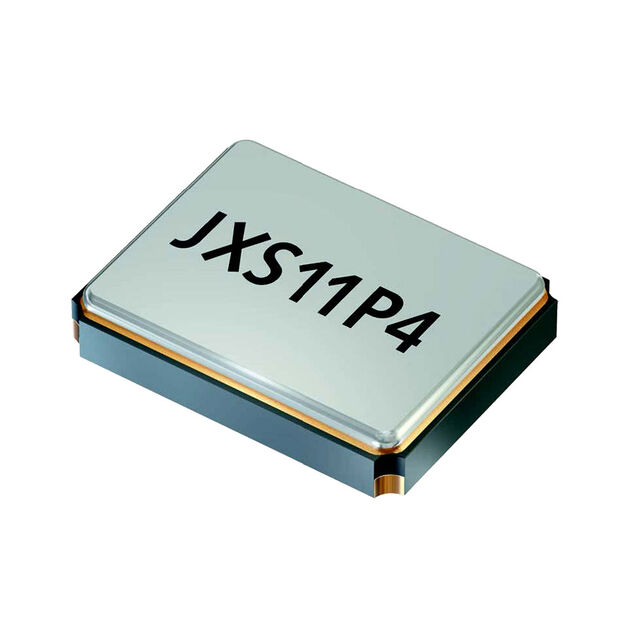

| Part Number | Q 32,0-JXS11P4-12-10/30-T2-FU-AEC-LF | Q 32,0-JXS11P4-12-10/30-T2-FU-AEC-LF | Q 32,0-JXS11P4-8-10/30-T2-FU-AEC-LF | Q 32,0-JXS10-6-10/10-FU-LF |
| Manufacturer | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 32.0000MHZ 12PF SMD | CRYSTAL 32.0000MHZ 12PF SMD | CRYSTAL 32.0000MHZ 8PF SMD | CRYSTAL 32MHZ 6PF SMD |
| Series | Jauch Quartz | Jauch Quartz | Jauch Quartz | Jauch Quartz |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
