Q48SG12034NRFB
lmages are for reference only.Q48SG12034NRFB
DC DC CONVERTER 11.8V 400W
Datasheet13-DIP Module, 1/4 Brick
74,219 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module, Digital DC DC Converter 1 Output 11.8V 34A 38V - 75V Input
Q48SG12034NRFB
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics |
| Series | Delphi Q48SG |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module, Digital |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 38V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 11.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 34A |
| Power (Watts) | 400 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 96% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 13-DIP Module, 1/4 Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.44" H (58.4mm x 36.8mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | Q48SG |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |

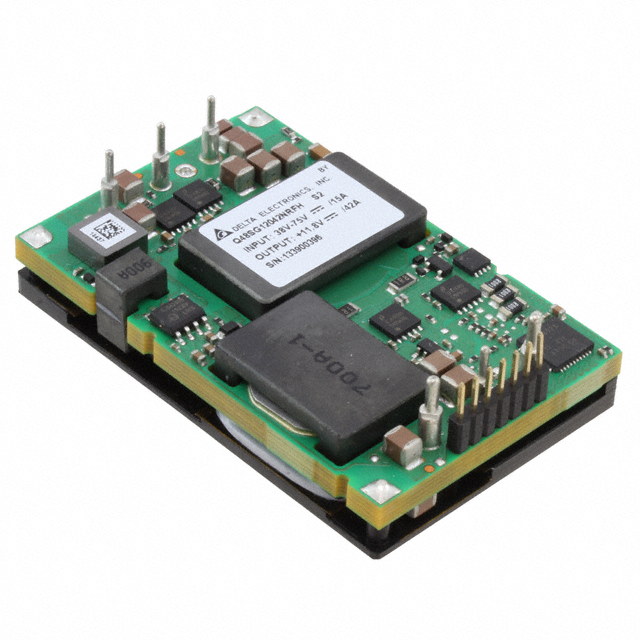

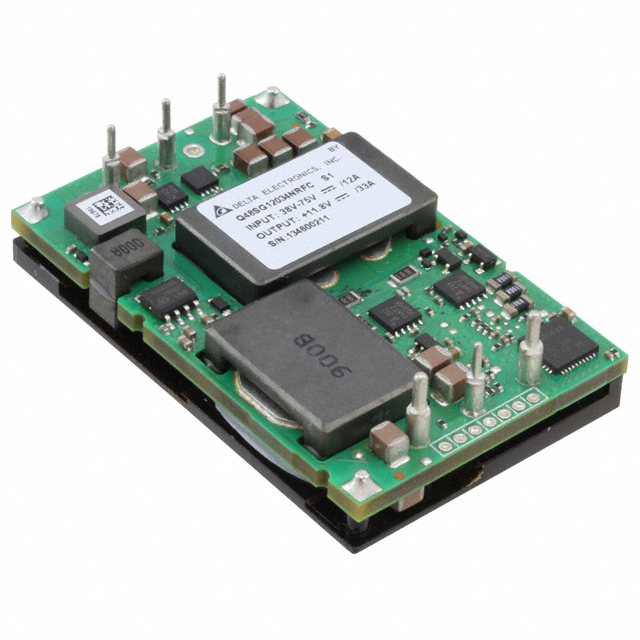

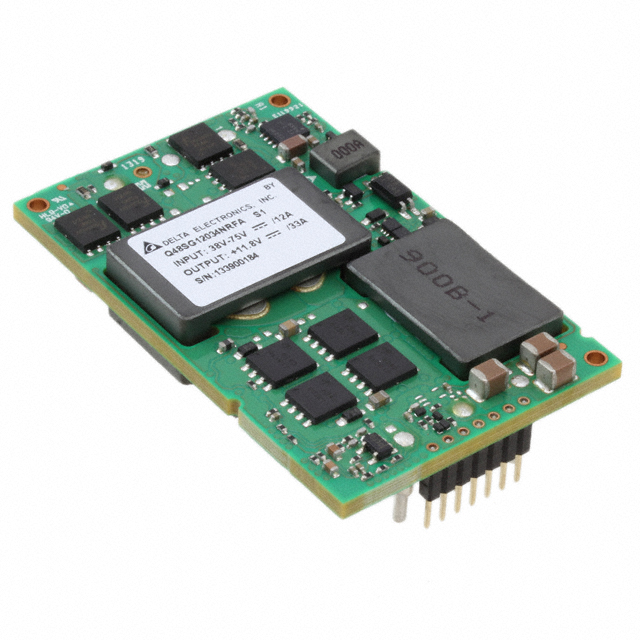

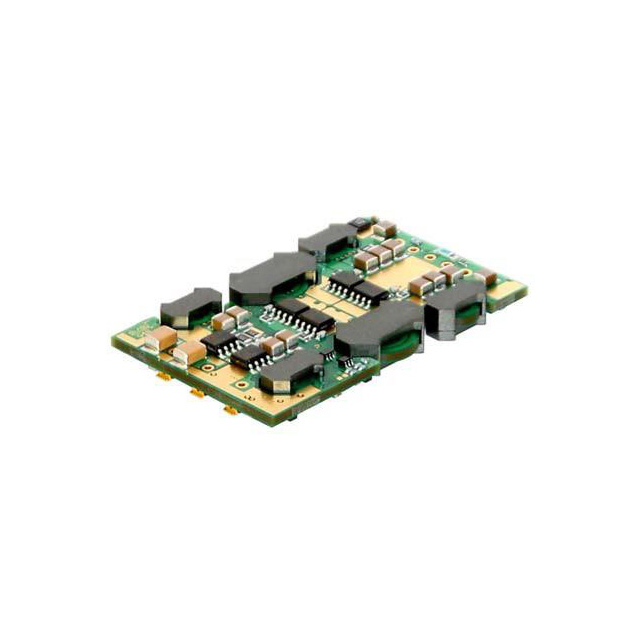

| Part Number | Q48SG12034NRFA | Q48SG12034NRFC | Q48SG12042NRFH | Q48S08120-PS00G |
| Manufacturer | Delta Electronics | Delta Electronics | Delta Electronics | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 11.8V 400W | DC DC CONVERTER 11.8V 400W | DC DC CONVERTER 11.8V 500W | DC DC CONVERTER 12V 96W |
| Series | Delta Electronics | Delta Electronics | Delta Electronics | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
