Q48T25033-NDB0
lmages are for reference only.Q48T25033-NDB0
DC DC CONVERTER 3.3V 83W
Datasheet8-DIP Module, 1/4 Brick
19,458 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 75V Input
Q48T25033-NDB0
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | Q48 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 25A |
| Power (Watts) | 83 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 88.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/4 Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.34" H (58.4mm x 36.8mm x 8.6mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | Q48T25033 |
| Voltage - Isolation | 2 kV |
| Product Attribute | |
 |
|
|

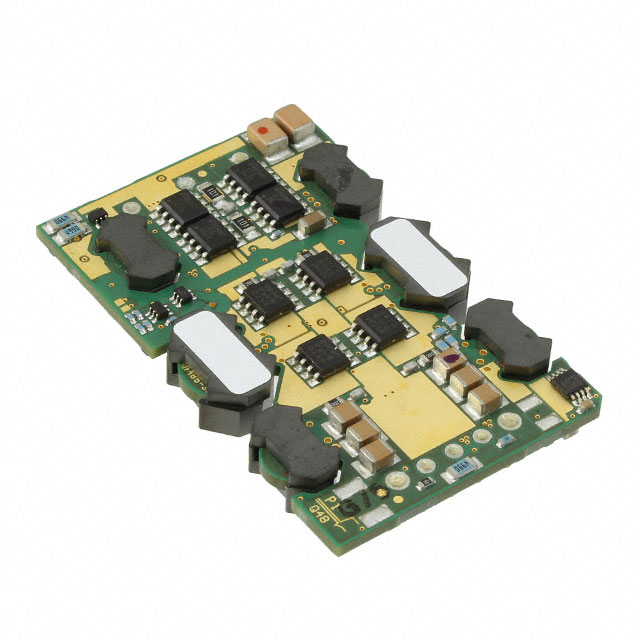

| Part Number | Q48T08120-NBB0 | Q48T20050-NAC0G | Q48T25018-NBB0 | Q48T30033-NAAC |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | DC DC CONVERTER 12V 96W | DC DC CONVERTER 5V 100W | DC DC CONVERTER 1.8V 45W | DC DC CONVERTER 3.3V 99W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
