Q80SV24006PRFS
lmages are for reference only.Q80SV24006PRFS
14.4-170VIN, 24VOUT, 150W, EN501
DatasheetQuarter Brick
20,054 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 6.3A 14.4V - 170V Input
Q80SV24006PRFS
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics |
| Series | Q80SV_150W (150W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 14.4V |
| Voltage - Input (Max) | 170V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.3A |
| Power (Watts) | 151 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 89.3% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.39" L x 1.54" W x 0.50" H (60.6mm x 39.0mm x 12.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | Enable, Active High |
| Approval Agency | EN, UL |
| Standard Number | 60950-1; 62368-1 |
| Base Product Number | Q80SV |
| Voltage - Isolation | 4.242 kV |
| Product Attribute |  |
 |
 |
|
| Part Number | Q80SV05030PRFS | Q80SV12013PRFS | Q80SV15010PRFS | Q80SV54003PRFS |
| Manufacturer | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

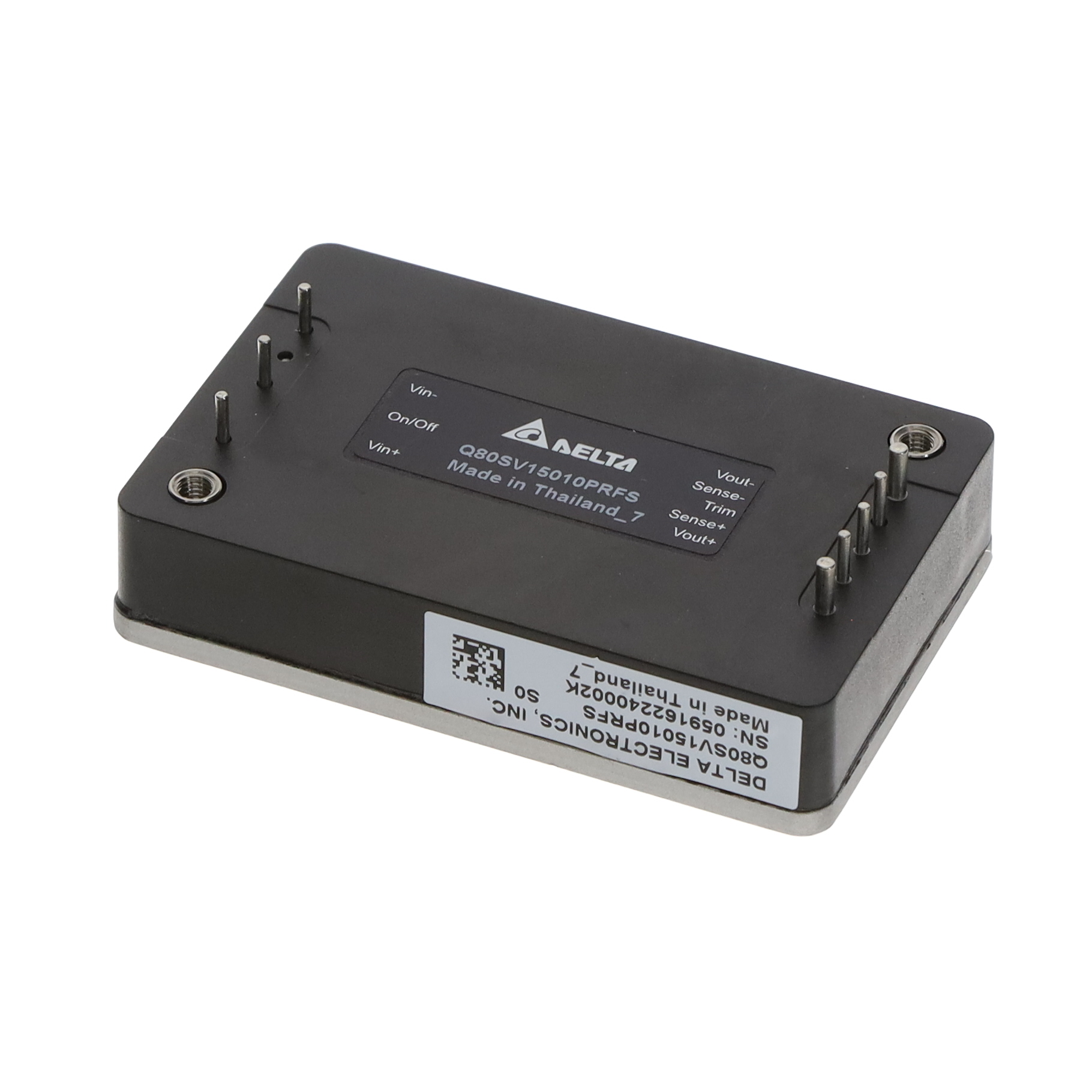

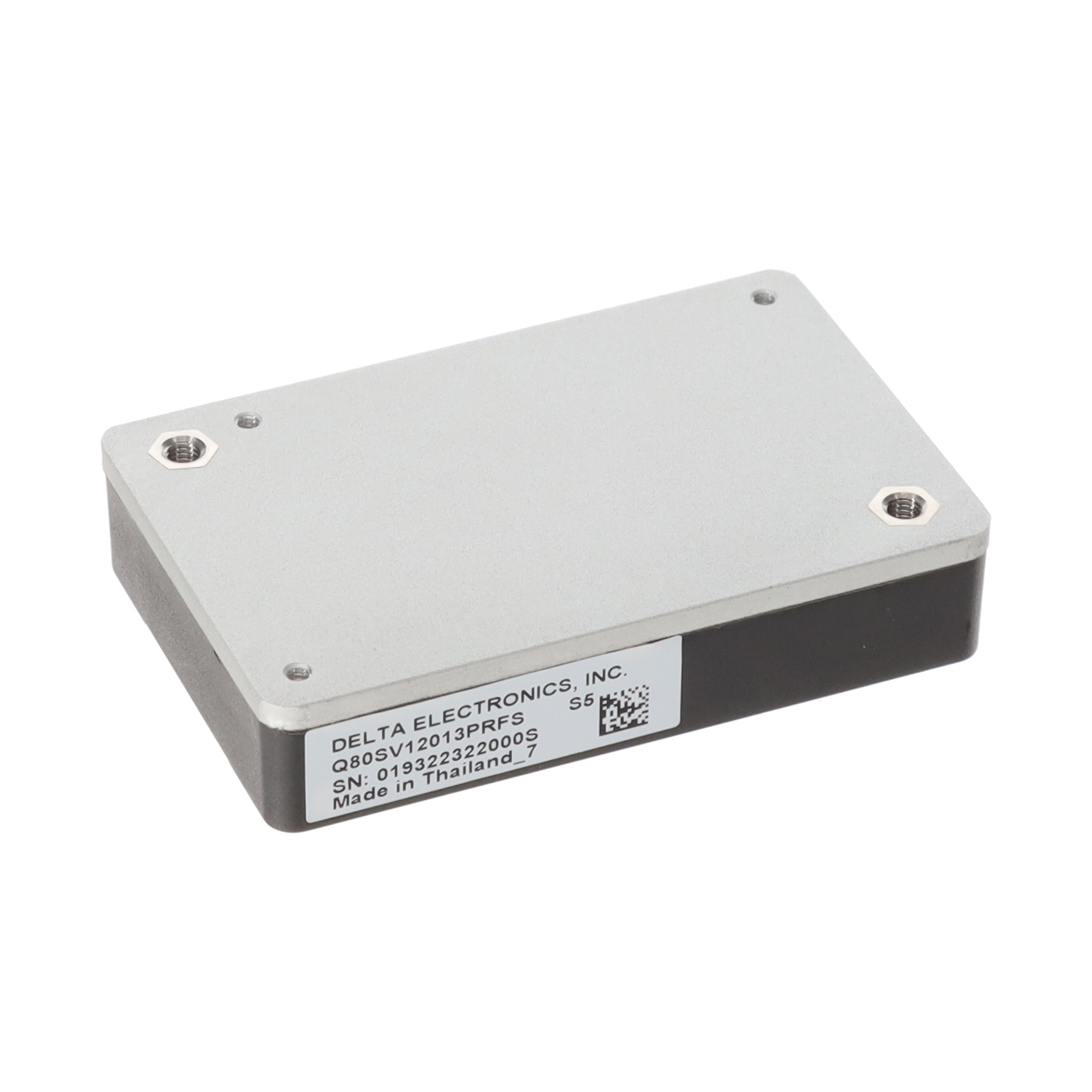

| Description | 14.4-170VIN, 5VOUT, 150W, EN5015 | 14.4-170VIN, 12VOUT, 150W, EN501 | 14.4-170VIN, 15VOUT, 150W, EN501 | 14.4-170VIN, 54VOUT, 150W, EN501 |
| Series | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| Packaging | Tray | Tray | Tray | Tray |
