QA053C-2004R3
lmages are for reference only.QA053C-2004R3
DC/DC CONVERTER 5V 20/-4.0V 1.
Datasheet7-SIP Module, 5 Leads
63,426 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 20V -4V 80mA, 40mA 4.5V - 5.5V Input
QA053C-2004R3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 20V |
| Voltage - Output 2 | -4V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 80mA, 40mA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 5 kV |
| Product Attribute |  |
 |
 |
 |

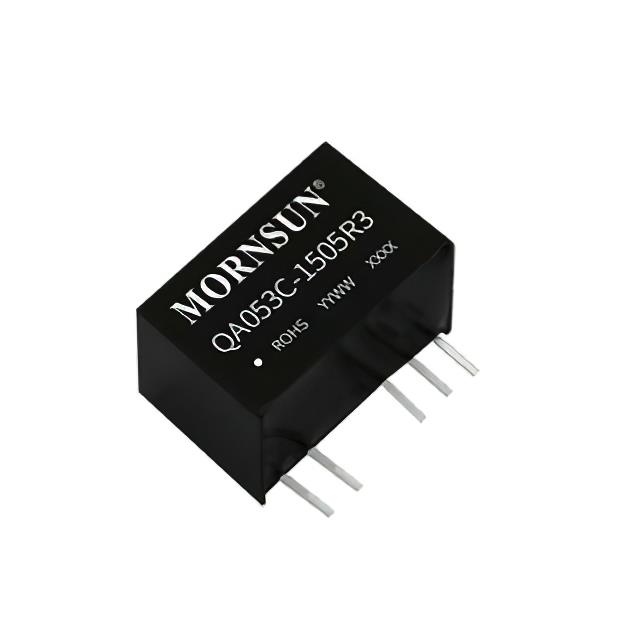

| Part Number | QA053C-1505R3 | QA053C-1803R3 | QA01 | QA01-17 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 15/-5.0V 1.4 | DC/DC CONVERTER 5V 18/-3.5V 1. | DC DC CONVERTER FOR IGBT DRIVER, | DC DC CONVERTER FOR IGBT DRIVER, |
| Series | ||||
| Packaging | QA_C-R3 | QA_C-R3 | QA | QA |
