QBL8RAG30D1
lmages are for reference only.QBL8RAG30D1
LED GRN/RED DIFFUSED T-1 3/4 T/H
DatasheetRadial - 3 Leads
28,465 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red 570nm Green, 624nm Red LED Indication - Discrete 2V Green, 2V Red Radial - 3 Leads
QBL8RAG30D1
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | QT Brightek (QTB) |
| Series | QBL8XX30YZ |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Common Cathode |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 350mcd Green, 1000mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 5.00mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 30° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 570nm Green, 624nm Red |
| Wavelength - Peak | 573nm Green, 632nm Red |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | T-1 3/4 (5mm) |
| Size / Dimension | 5.00mm Dia |
| Height (Max) | 8.85mm |
| Base Product Number | QBL8RAG |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

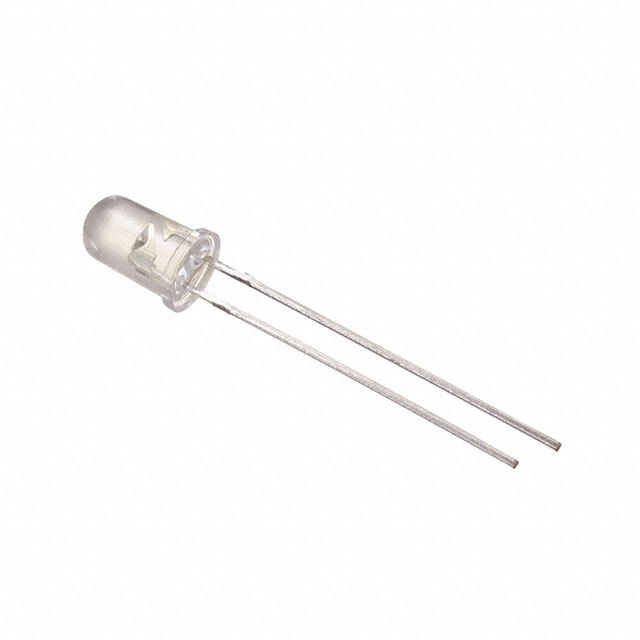

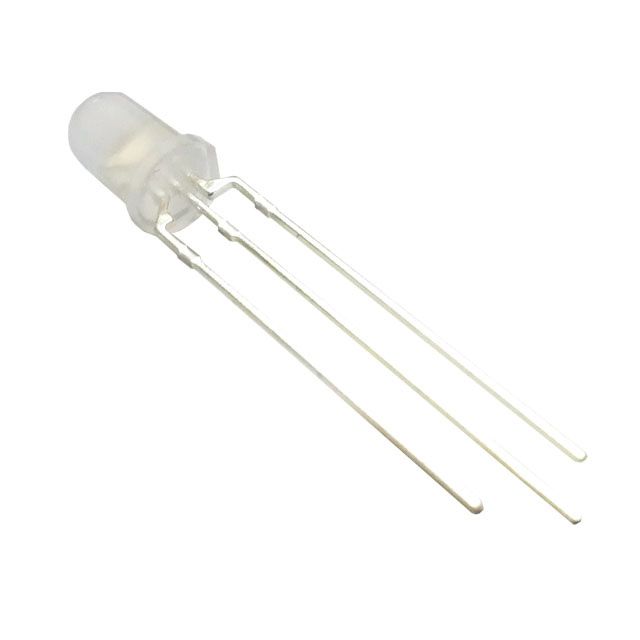

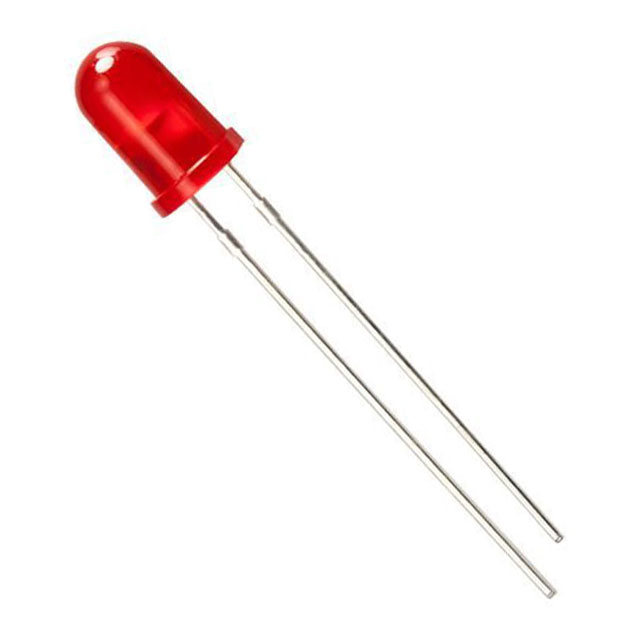

| Part Number | QBL8R15C | QBL8R30C | QBL8R60D | QBL8RAG60D1 |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR T-1 3/4 T/H | LED RED CLEAR T-1 3/4 T/H | LED RED DIFFUSED T-1 3/4 T/H | LED GRN/RED DIFFUSED T-1 3/4 T/H |
| Series | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| Packaging | Bulk | Bulk | Bulk | Bag |
