Product CatalogPart Number
QBLP677AD-IGM
Manufacturer
QT Brightek (QTB)Description
LED GREEN CLEAR 4PLCC SMD
Datasheet
DatasheetPackage
4-PLCC
In Stock
73,970 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
QBLP677AD-IGM
QBLP677AD-IGM
lmages are for reference only.Payment Methods
Delivery Services
Green 520nm LED Indication - Discrete 3V 4-PLCC
Quick Inquiry
QBLP677AD-IGM
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | QT Brightek (QTB) |
| Series | QBLP677 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 14000mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 2.35mm Dia |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 30mA |
| Viewing Angle | 30° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 520nm |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 4-PLCC |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 3.80mm |
| Base Product Number | QBLP677 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |

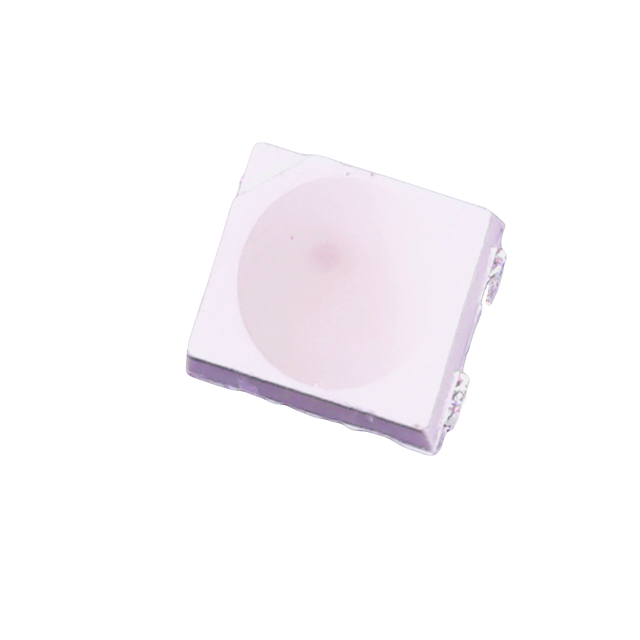

.jpg "QBLP677-RGB (HIGH BRIGHT)") |

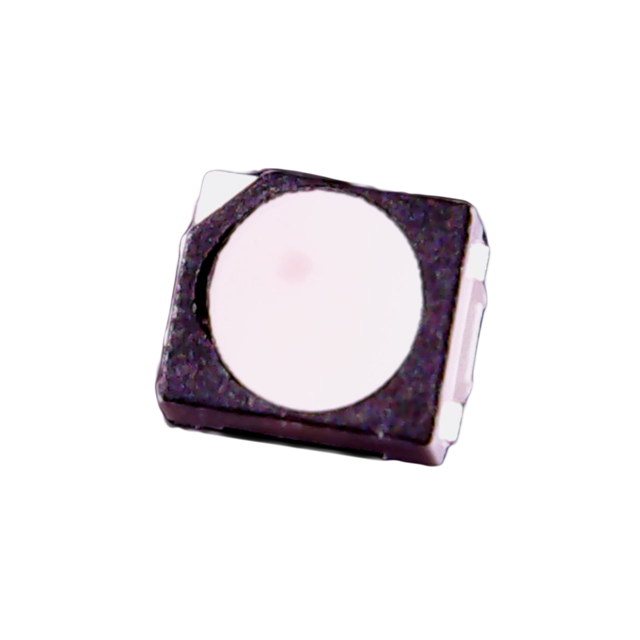

.jpg "QBLP677-RGB2 (HIGH BRIGHT)") |

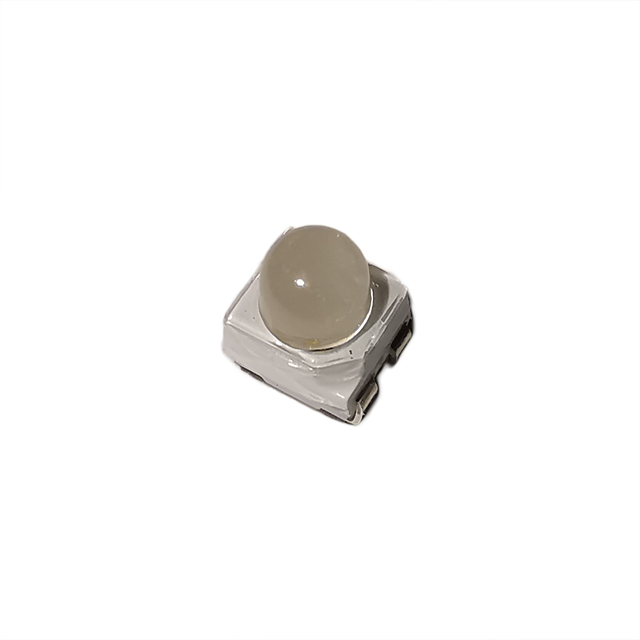

| Part Number | QBLP677AD-RGB2 | QBLP677AD-RGB5 | QBLP677-RGB (HIGH BRIGHT) | QBLP677-RGB2 (HIGH BRIGHT) |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB DIFFUSED 4PLCC SMD | LED RGB CLEAR 4PLCC SMD | LED RGB DIFFUSED 4PLCC SMD | LED RGB DIFFUSED 4PLCC SMD |
| Series | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
