QBTS560AG
lmages are for reference only.QBTS560AG

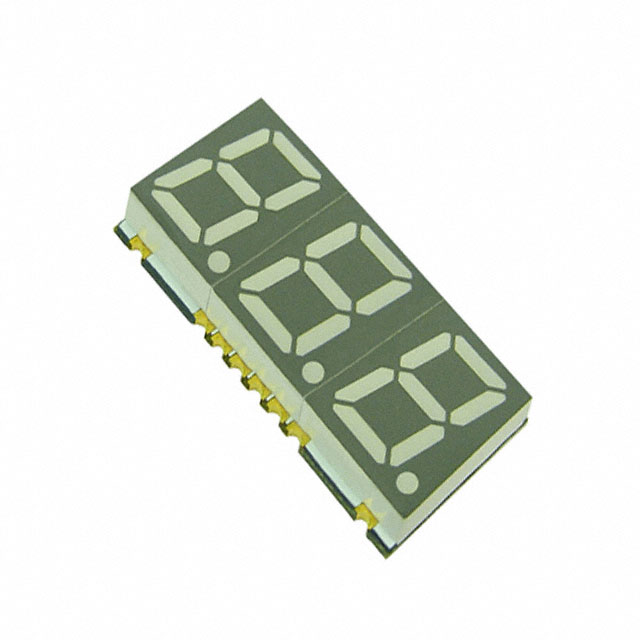

DISP 7SEG 0.56" TRP YLW-GN 12SMD
Datasheet12-SMD, 11 Leads
104,856 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Yellow-Green 7-Segment 3 Character Common Anode 2V 20mA 0.748" H x 1.476" W x 0.152" D (19.00mm x 37.50mm x 3.85mm) 12-SMD, 11 Leads
QBTS560AG
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | QT Brightek (QTB) |
| Series | QBTS56ZXX |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 3 |
| Size / Dimension | 0.748" H x 1.476" W x 0.152" D (19.00mm x 37.50mm x 3.85mm) |
| Digit/Alpha Size | 0.56" (14.22mm) |
| Display Type | 7-Segment |
| Common Pin | Common Anode |
| Color | Yellow-Green |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Millicandela Rating | 10mcd |
| Wavelength - Peak | 570nm |
| Power Dissipation (Max) | 70mW |
| Package / Case | 12-SMD, 11 Leads |
| Base Product Number | QBTS560 |
| Display Format | - |
| Product Attribute |  |
 |
|
|
| Part Number | QBTS560R | QBT40AG0 | QBT40AG1 | QBT40IB0 |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DISPLAY 7SEG 0.56" TRP RED 12SMD | DISP 7SEG 0.4" TRPL YLW-GN 12DIP | DISP 7SEG 0.4" TRPL YLW-GN 12DIP | DISPLAY 7SEG 0.4" TRPL BLU 12DIP |
| Series | QBTS56ZXX | QBT40xxz | QBT40xxz | QBT40xxz |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Bulk | Bulk | Bulk |
