QCCT102Q0R9B1GV001E

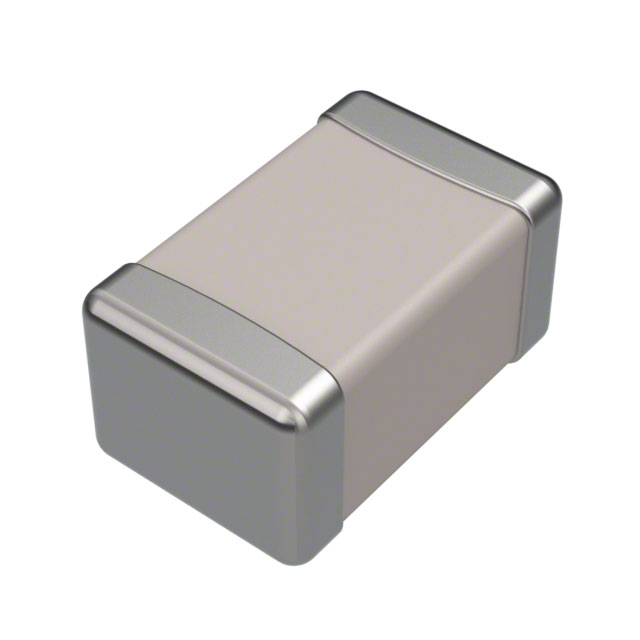

lmages are for reference only.QCCT102Q0R9B1GV001E
CAP CER 0.9PF 1KV C0G/NP0 0805
Datasheet0805 (2012 Metric)
86,663 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.9 pF ±0.1pF 1000V (1kV) Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
QCCT102Q0R9B1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Johanson Technology Inc. |
| Series | C |
| Capacitance | 0.9 pF |
| Tolerance | ±0.1pF |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C |
| Features | High Q, Low Loss |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.046" (1.17mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | QCCT102Q |
| Product Attribute |  |
 |
 |
 |
| Part Number | QCCT102Q0R3A1GV001E | QCCT102Q0R5A1GV001E | QCCT102Q0R5B1GV002E | QCCT102Q0R6B1GV001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.3PF 1KV C0G/NP0 0805 | CAP CER 0.5PF 1KV C0G/NP0 0805 | CAP CER 0.5PF 1KV C0G/NP0 0805 | CAP CER 0.6PF 1KV C0G/NP0 0805 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
