QEDB102Q3R0B1GV001E

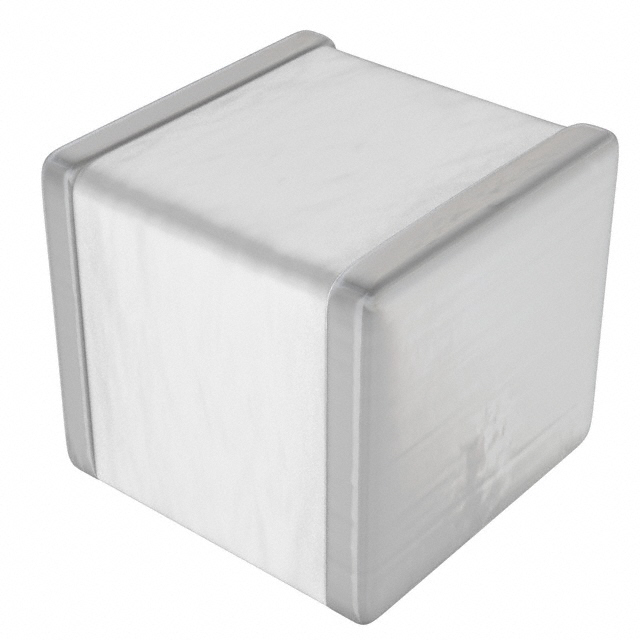

lmages are for reference only.QEDB102Q3R0B1GV001E
CAP CER 3PF 1KV NP0 1111
Datasheet1111 (2828 Metric)
85,881 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3 pF ±0.1pF 1000V (1kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric)
QEDB102Q3R0B1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Johanson Technology Inc. |
| Series | E |
| Capacitance | 3 pF |
| Tolerance | ±0.1pF |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension | 0.110" L x 0.110" W (2.79mm x 2.79mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.102" (2.59mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | QEDB102Q300F1GV001E | QEDB102Q300G1GV001E | QEDB102Q300J1GV001E | QEDB102Q300K1GV001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 30PF 1KV NP0 1111 | CAP CER 30PF 1KV NP0 1111 | CAP CER 30PF 1KV NP0 1111 | CAP CER 30PF 1KV NP0 1111 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
