QEDB501Q100J1GV001E

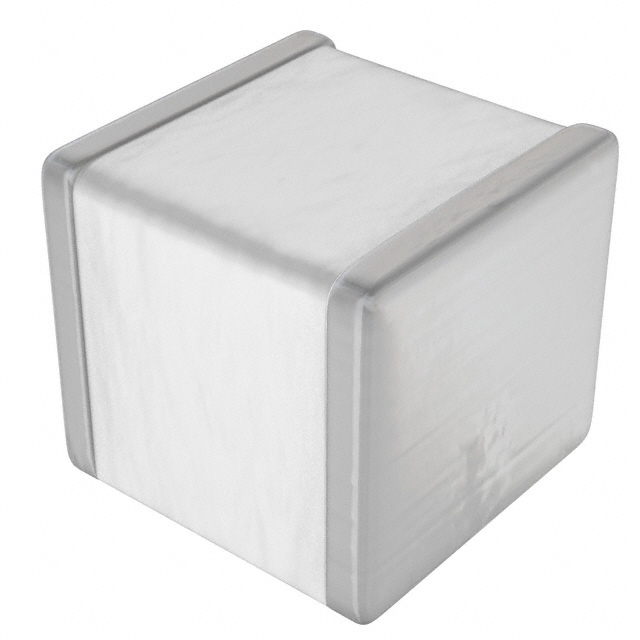

lmages are for reference only.QEDB501Q100J1GV001E
CAP CER 10PF 500V C0G/NP0 1111
Datasheet1111 (2828 Metric)
28,461 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric)
QEDB501Q100J1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | E |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 10 pF |
| Tolerance | ±5% |
| Voltage - Rated | 500V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension | 0.110" L x 0.110" W (2.79mm x 2.79mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.102" (2.59mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | QEDB501Q100F1GV001E | QEDB501Q100G1GV001E | QEDB501Q100K1GV001E | QEDB501Q101F1GV001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 10PF 500V NP0 1111 | CAP CER 10PF 500V NP0 1111 | CAP CER 10PF 500V NP0 1111 | CAP CER 100PF 500V NP0 1111 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
