Product CatalogPart Number
QH12TZ600Q
Manufacturer
Power IntegrationsDescription
DIODE SIL CARB 600V 12A TO220AC
Datasheet
DatasheetPackage
TO-220-2
In Stock
12,625 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
QH12TZ600Q
QH12TZ600Q

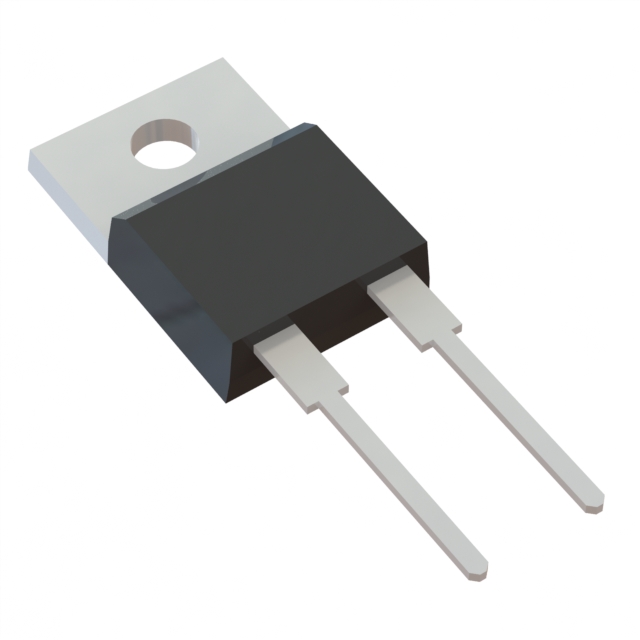

lmages are for reference only.Payment Methods
Delivery Services
Diode 600 V 12A Through Hole TO-220AC
Quick Inquiry
QH12TZ600Q
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Power Integrations |
| Series | Qspeed™ |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 12A |
| Voltage - Forward (Vf) (Max) @ If | 3.1 V @ 12 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 11.6 ns |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
| Capacitance @ Vr, F | 34pF @ 10V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | QH12BZ600 | QH12TZ600 | VS-HFA25PB60-N3 | RS07K-GS18 |
| Manufacturer | Power Integrations | Power Integrations | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 600V 12A TO263AB | DIODE GEN PURP 600V 12A TO220AC | DIODE GP 600V 25A TO247AC | DIODE GP 800V 500MA DO219AB |
| Series | Qspeed™ | Qspeed™ | HEXFRED® | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
