Product CatalogPart Number
QLSP15RNB
Manufacturer
Quelighting CorpDescription
LED BLUE/RED 4SMD BOTTOM ENT
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
84,693 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
QLSP15RNB
QLSP15RNB
lmages are for reference only.Payment Methods
Delivery Services
Blue, Red 472nm Blue, 624nm Red LED Indication - Discrete 3.15V Blue, 2.15V Red 4-SMD, No Lead
Quick Inquiry
QLSP15RNB
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Quelighting Corp |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Blue, Red |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 130mcd Blue, 120mcd Red |
| Lens Style | Square with Flat Top |
| Lens Size | 1.40mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 3.15V Blue, 2.15V Red |
| Current - Test | 20mA Blue, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 472nm Blue, 624nm Red |
| Wavelength - Peak | 470nm Blue, 632nm Red |
| Features | - |
| Package / Case | 4-SMD, No Lead |
| Supplier Device Package | 4-SMD |
| Size / Dimension | 3.20mm L x 1.25mm W |
| Height (Max) | 1.20mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

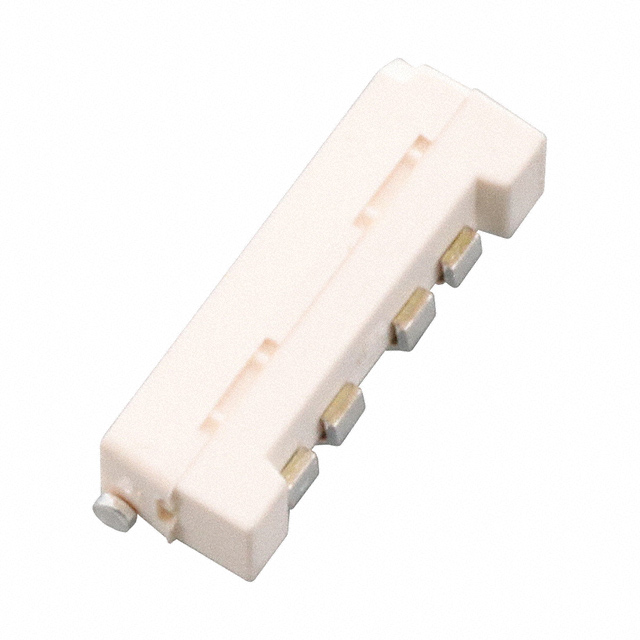

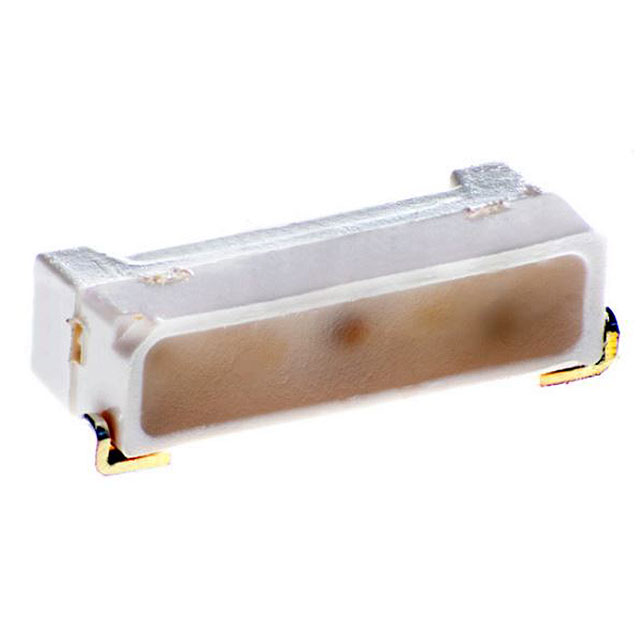

| Part Number | QLSP15RGB | QLSP15RNG | QLS6A-FKW-CNSNSF043 | QLS6B-FKW-CNSNSF043 |
| Manufacturer | Quelighting Corp | Quelighting Corp | Cree LED | Cree LED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | LED RGB 4SMD BOTTOM ENT | LED GREEN/RED 4SMD BOTTOM ENT | LED RGB 6PLCC SMD R/A | LED RGB 6PLCC SMD R/A |
| Series | Quelighting Corp | Quelighting Corp | Cree LED | Cree LED |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
