QM48T45018-NDA0G

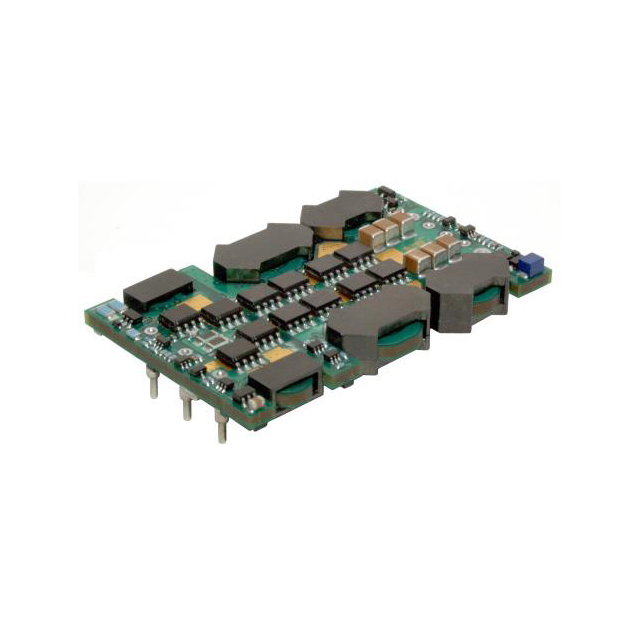

lmages are for reference only.QM48T45018-NDA0G
DC DC CONVERTER 1.8V 81W
Datasheet8-DIP Module, 1/4 Brick
36,782 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 1.8V 45A 36V - 75V Input
QM48T45018-NDA0G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | QmaX™ |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 45A |
| Power (Watts) | 81 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/4 Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.42" H (58.4mm x 36.8mm x 10.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | QM48T45018 |
| Voltage - Isolation | 2 kV |
| Product Attribute |  |
|
|
|
| Part Number | QM48T45018-NDA0 | QM48T40018-NBA0G | QM48T40018-NBB0 | QM48T40033-NBA0 |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 1.8V 81W | DC DC CONVERTER 1.8V 72W | DC DC CONVERTER 1.8V 72W | DC DC CONVERTER 3.3V 132W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Bulk | Bulk | Bulk |
