QN9020/EY
Manufacturer
NXP USA Inc.Description
IC RF TXRX+MCU BLE 48HVQFN
Datasheet
DatasheetPackage
48-VFQFN Exposed Pad
In Stock
59,704 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
QN9020/EY

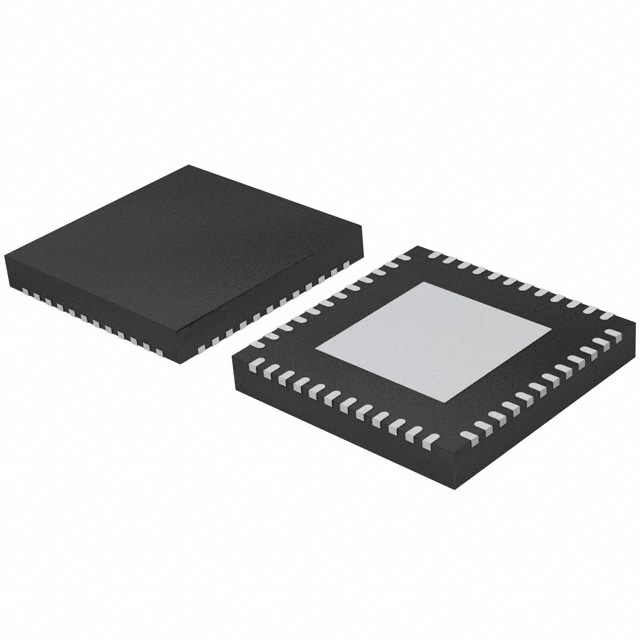

QN9020/EY
lmages are for reference only.Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz ~ 2.4835GHz 48-VFQFN Exposed Pad
Quick Inquiry
QN9020/EY
Specifications
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.2 |
| Modulation | GFSK |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max) | 1Mbps |
| Power - Output | 4dBm |
| Sensitivity | -95dBm |
| Memory Size | 128kB Flash |
| Serial Interfaces | I2C, SPI, UART |
| GPIO | 31 |
| Voltage - Supply | 2.4V ~ 3.6V |
| Current - Receiving | 9.25mA ~ 13.6mA |
| Current - Transmitting | 4.3mA ~ 17.6mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-HVQFN (6x6) |
| Base Product Number | QN9020 |
| Grade | - |
| Qualification | - |
