Product CatalogPart Number
QP-150-3A
Manufacturer
MEAN WELL USA Inc.Description
AC/DC CNVRT 5V 3.3V 12V -5V 146W
Datasheet
DatasheetPackage
-
In Stock
27,935 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
QP-150-3A
QP-150-3A

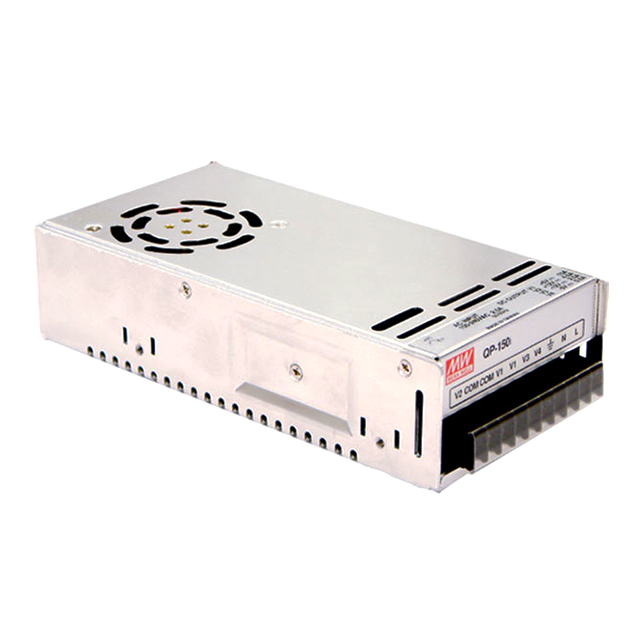

lmages are for reference only.Payment Methods
Delivery Services
Enclosed AC DC Converters 4 Output 5V 3.3V 12V -5V 90 ~ 264 VAC, 127 ~ 370 VDC Input
Quick Inquiry
QP-150-3A
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | MEAN WELL USA Inc. |
| Series | QP-150 (150W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Enclosed |
| Number of Outputs | 4 |
| Voltage - Input | 90 ~ 264 VAC, 127 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | 12V |
| Voltage - Output 4 | -5V |
| Voltage - Output 6 | - |
| Current - Output 1 | 10 A |
| Current - Output 2 | 10 A |
| Current - Output 3 | 5 A |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 73% |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.83" L x 3.90" W x 1.97" H (199.0mm x 99.0mm x 50.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Minimum Load Required | Yes |
| Voltage - Output 5 | - |
| Current - Output 4 | 600 mA |
| Current - Output 5 | - |
| Power (Watts) | 146W |
| Features | Adjustable Output, PFC, Universal Input |
| Standard Number | - |
| Base Product Number | QP-150 |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | QP-150-3B | QP-150-3C | QP-150-3D | QP-150B |
| Manufacturer | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. | MEAN WELL USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AC/DC CNVRTR 5V 3.3V +/-12V 150W | AC/DC CNVRTR 5V 3.3V +/-15V 152W | AC/DC CNVT 5V 3.3V 24V -12V 150W | AC/DC CNVRTR 5V +/-12V -5V 150W |
| Series | QP-150 (150W) | QP-150 (150W) | QP-150 (150W) | QP-150 (150W) |
| Packaging | Box | Box | Box | Box |
