QSCF201Q1R7A1GV001T

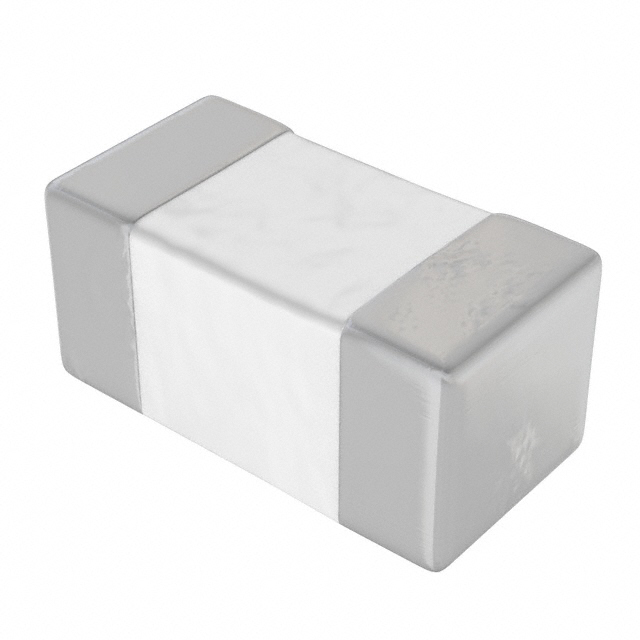

lmages are for reference only.QSCF201Q1R7A1GV001T
CAP CER 1.7PF 200V NP0 0402
Datasheet0402 (1005 Metric)
31,796 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.7 pF ±0.05pF 200V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
QSCF201Q1R7A1GV001T
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1.7 pF |
| Tolerance | ±0.05pF |
| Voltage - Rated | 200V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W (1.02mm x 0.51mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024" (0.61mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | QSCF201Q100G1GV001T | QSCF201Q110G1GV001T | QSCF201Q120G1GV001T | QSCF201Q130G1GV001T |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 10PF 200V C0G/NP0 0402 | CAP CER 11PF 200V C0G/NP0 0402 | CAP CER 12PF 200V C0G/NP0 0402 | CAP CER 13PF 200V C0G/NP0 0402 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
