QSDW035A0B41-HZ
lmages are for reference only.QSDW035A0B41-HZ
DC DC CONVERTER 12V 420W
Datasheet15-DIP Module, 1/4 Brick
56,735 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 35A 36V - 75V Input
QSDW035A0B41-HZ
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | Barracuda™ QSDW035A0B |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 35A |
| Power (Watts) | 420 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95.7% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 15-DIP Module, 1/4 Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | QSDW035 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
|
 |

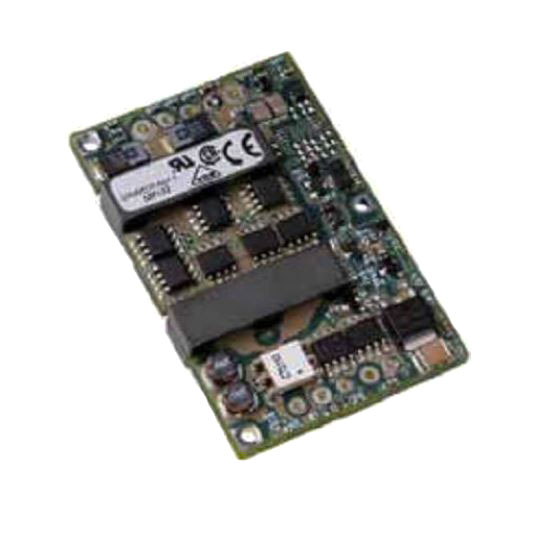

| Part Number | QSDW035A0B41Z | QSDW042A0B41-HZ | QSDW042A0B641-HZ | QSDW050A0B41-HZ |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 12V 420W | DC DC CONVERTER 12V | DC DC CONVERTER 12V | DC DC CONVERTER 12V 600W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Tray | Bulk | Bulk | Tray |
