R10-E2Z4-V700

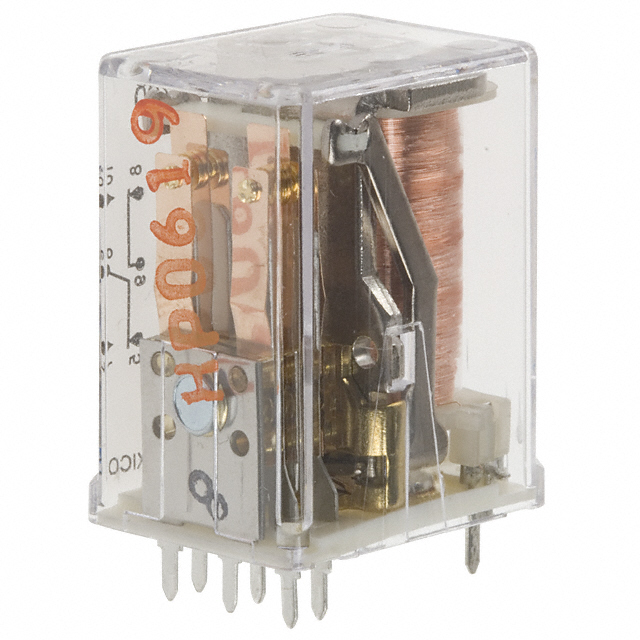

lmages are for reference only.R10-E2Z4-V700
RELAY GEN PURPOSE 4PDT 2A 24V
Datasheet-
88,990 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay 4PDT (4 Form C) Through Hole
R10-E2Z4-V700
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | R10 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Rating (Current) | 2 A |
| Switching Voltage | 120VAC, 30VDC - Max |
| Load - Max Switching | 240VA, 60W |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | - |
| Operate Time | - |
| Release Time | - |
| Operating Temperature | -55°C ~ 75°C |
| Contact Material | Silver (Ag) |
| Approval Agency | CSA, UR |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | R10-E2Z4 |
| Coil Current | 34.3 mA |
| Coil Resistance | 700 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | R10-E2Z2-J1.0K | R10-E2Z4-V15.0K | R10-E2Z6-V430 | R10-E1Z2-115V |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 2A 12V | RELAY GEN PURPOSE 4PDT 2A 115V | RELAY GEN PURPOSE 6PDT 2A 24V | RELAY GEN PURPOSE DPDT 2A 115V |
| Series | R10 | R10 | R10 | R10 |
| Packaging | Bulk | Tray | Bulk | Bulk |
