R1514S037B-E2-FE

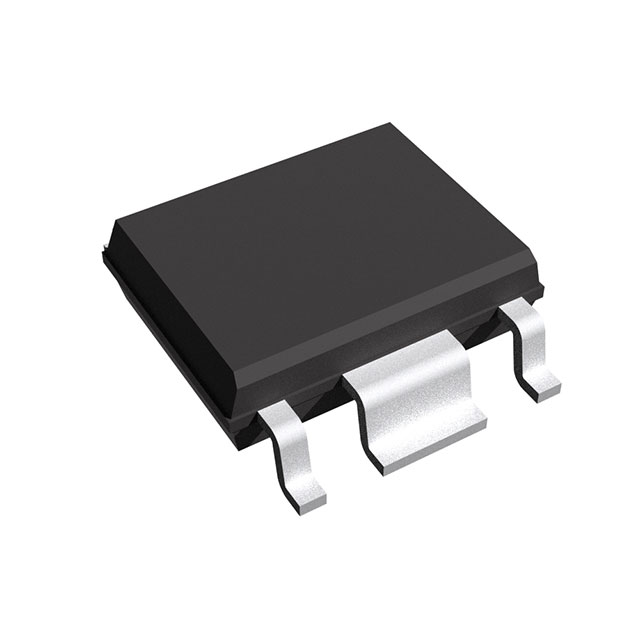

lmages are for reference only.R1514S037B-E2-FE
IC REG LINEAR 3.7V 150MA 6HSOP
Datasheet6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
36,804 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA 6-HSOP-J
R1514S037B-E2-FE
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | R1514x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 3.7V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 20mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 20 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 105°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins |
| Supplier Device Package | 6-HSOP-J |
| Base Product Number | R1514 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | R1514S025B-E2-FE | R1514S029B-E2-FE | R1514S030B-E2-FE | R1514S033B-E2-FE |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG LINEAR 2.5V 150MA 6HSOP | IC REG LINEAR 2.9V 150MA 6HSOP | IC REG LINEAR 3V 150MA 6HSOP | IC REG LINEAR 3.3V 150MA 6HSOP |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
